Location
Poole Harbour, Dorset
Architects
Boyle+Summers
Client
Drew Smith
Info
£5.2m, 46 no. 1 + 2 bed apartments split in a part 4 + part 11 storey building with stunning views across Poole Harbour
Status
Planning consented Summer 2015
Completed Summer 2019
Role
Project Architect at B+S - RIBA work stages 4-5
Responsibility
Development of detailed technical Revit model
Technical design
Working drawings production

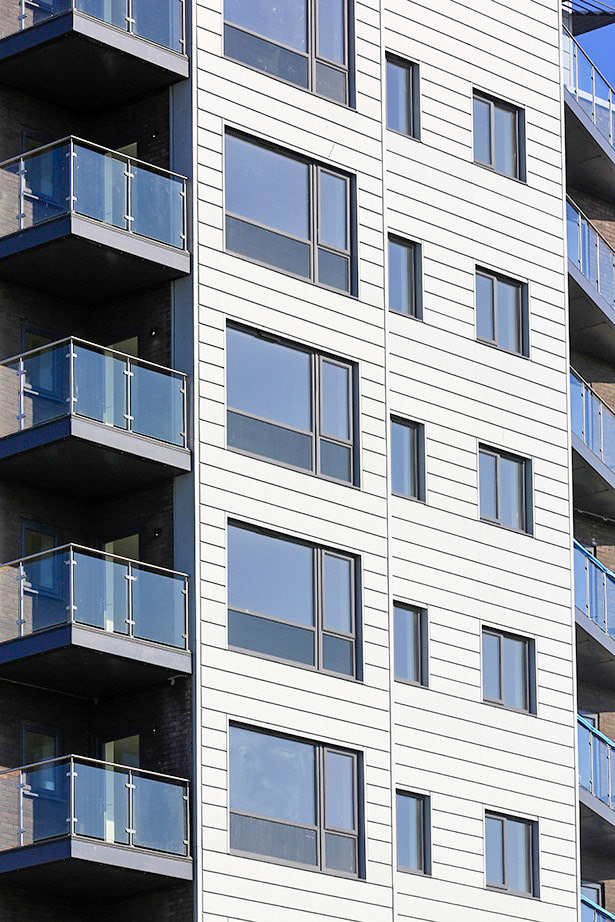

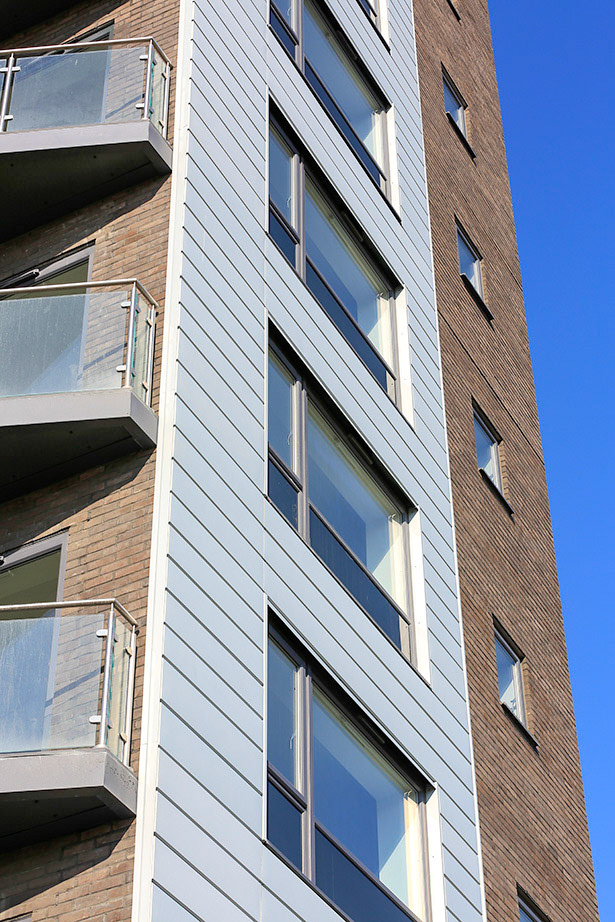

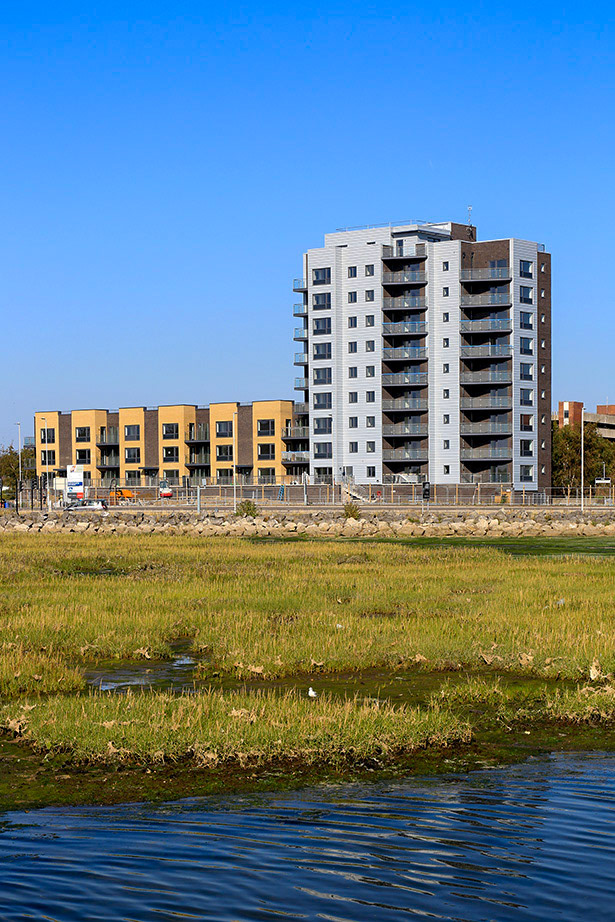

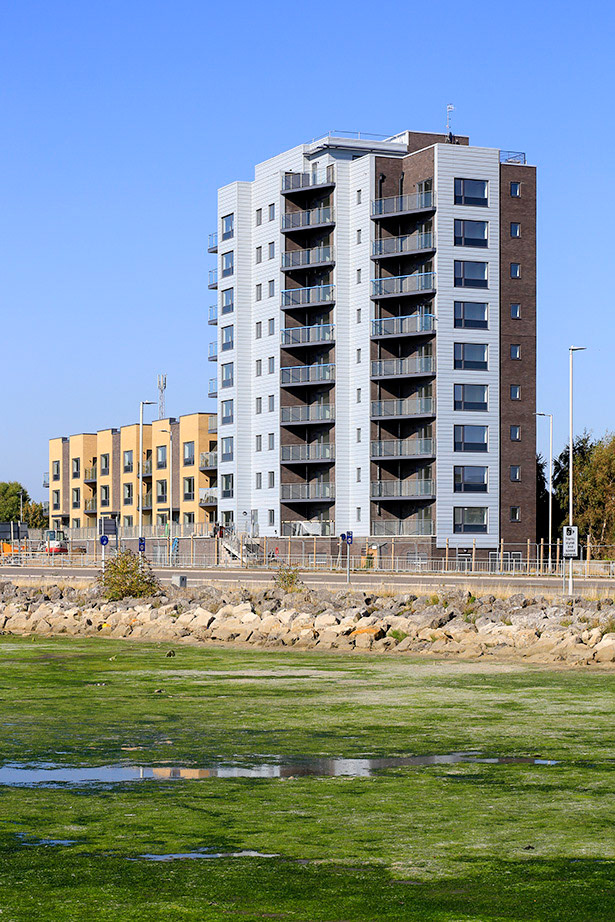

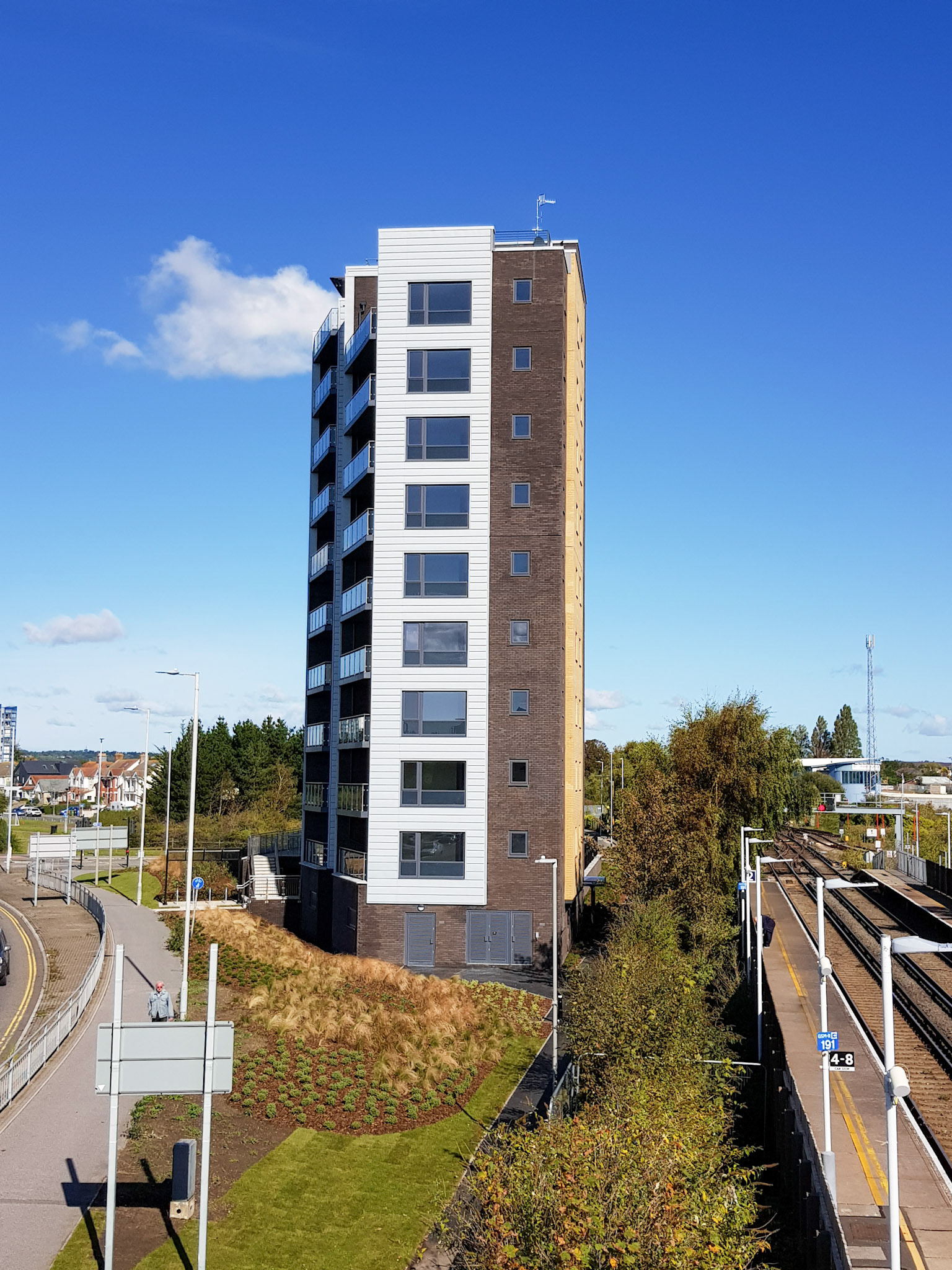

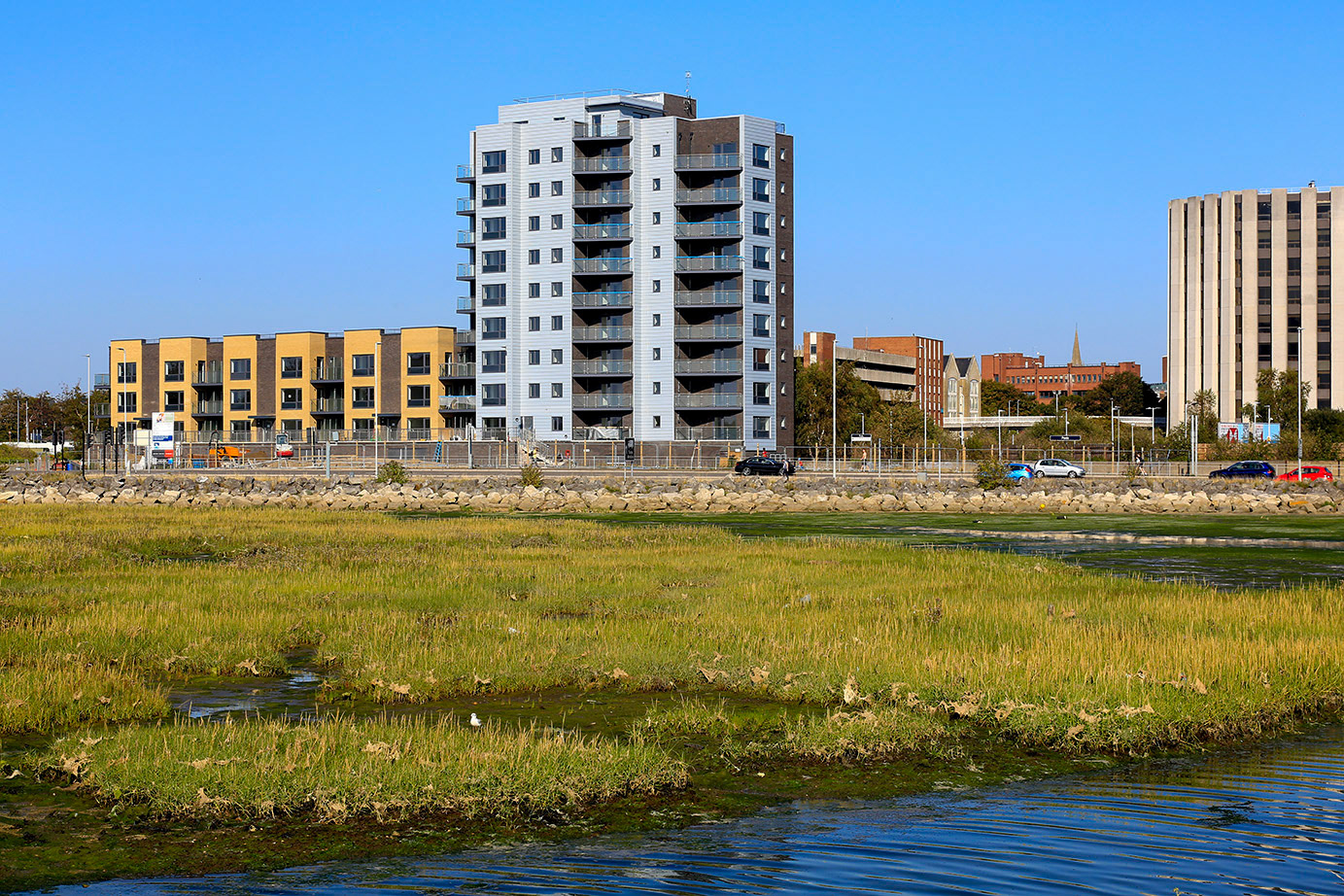

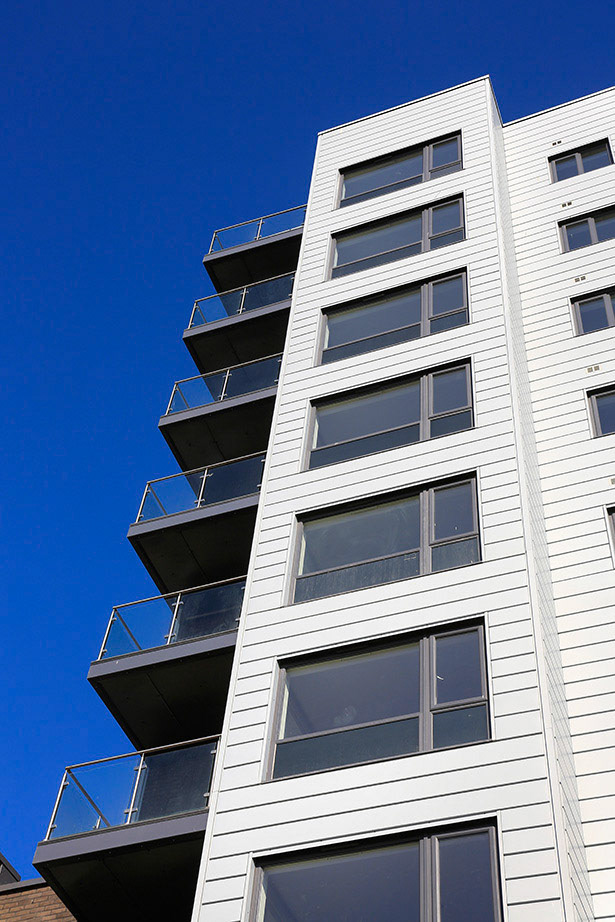

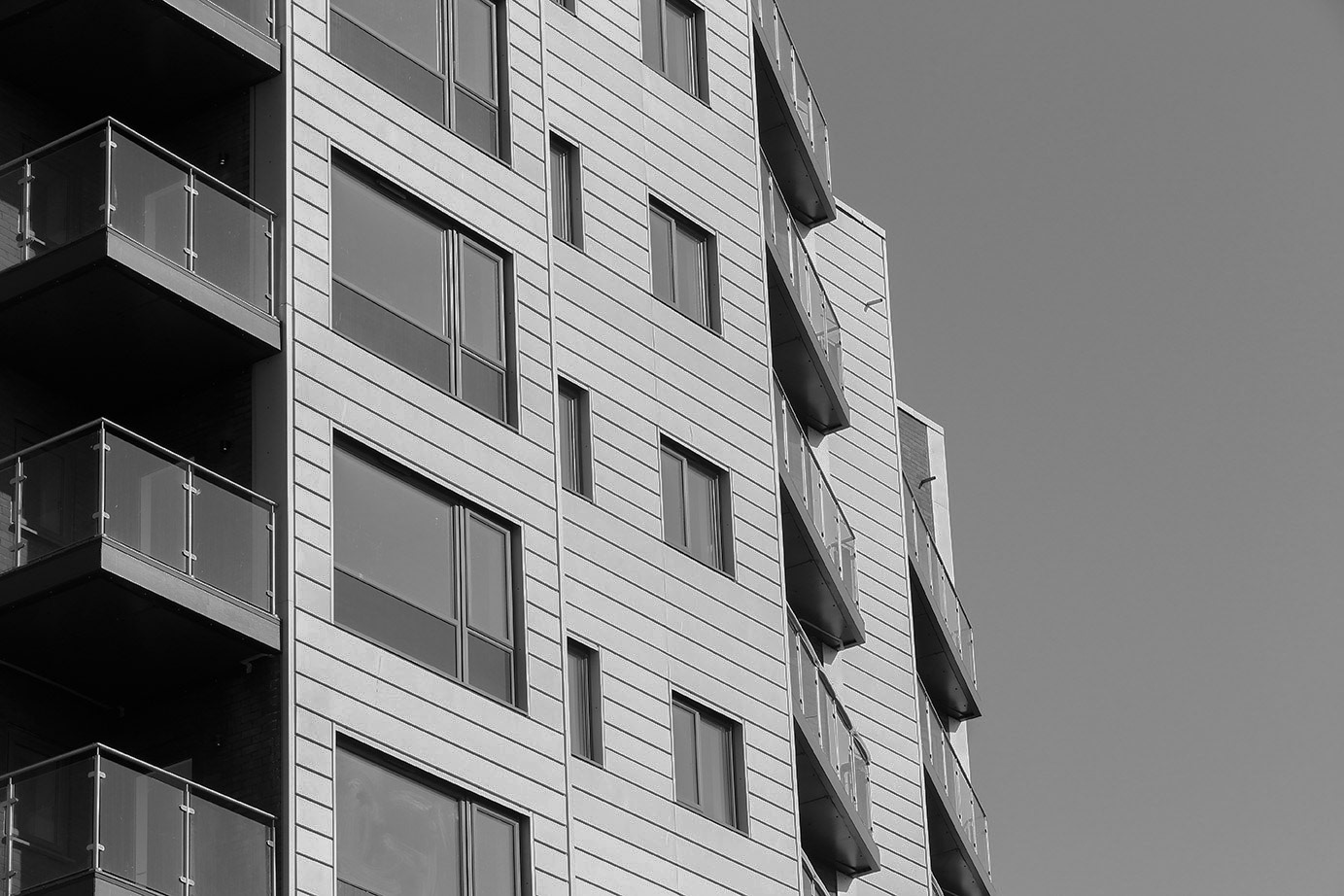

Completed Scheme 1

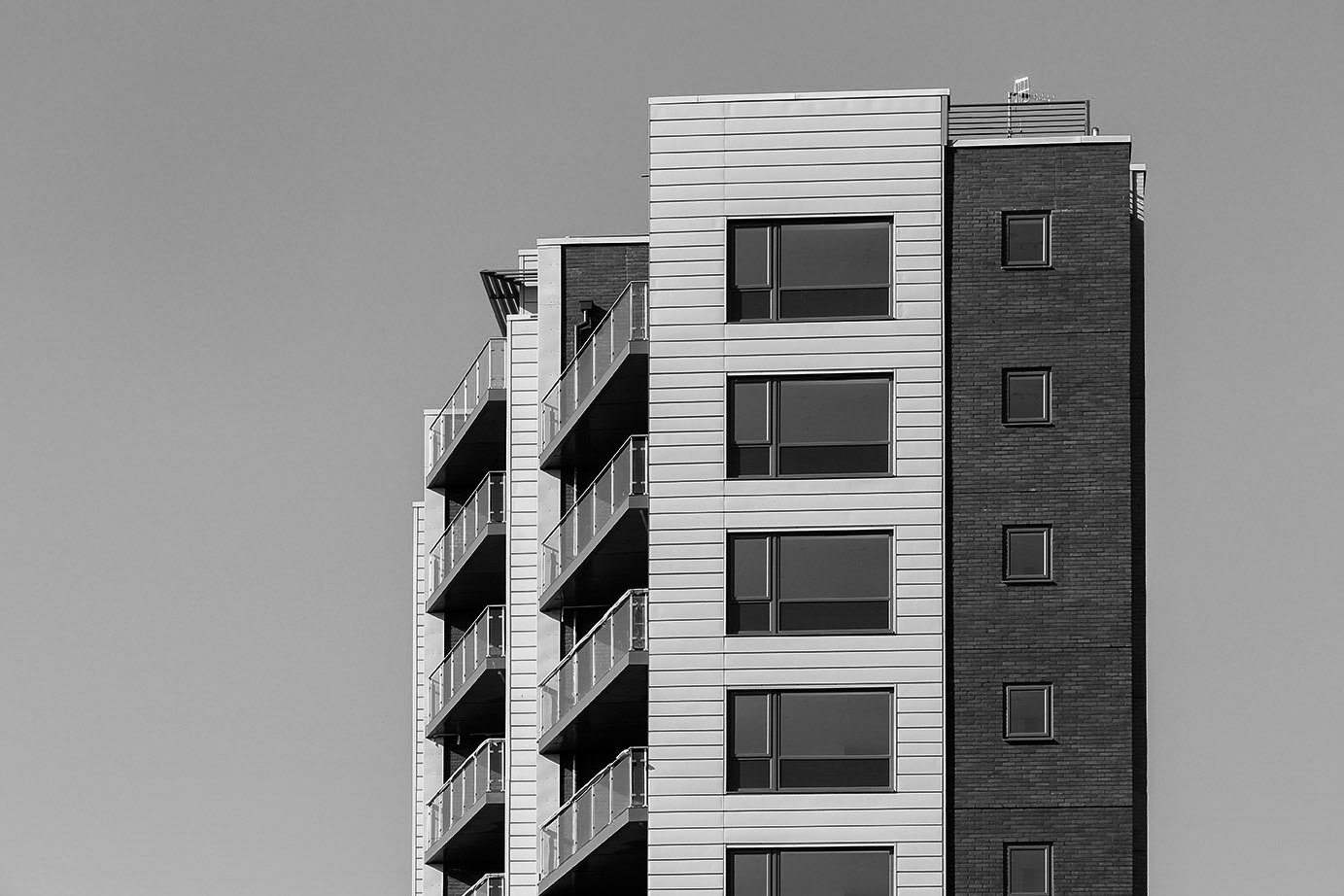

Completed Scheme 2

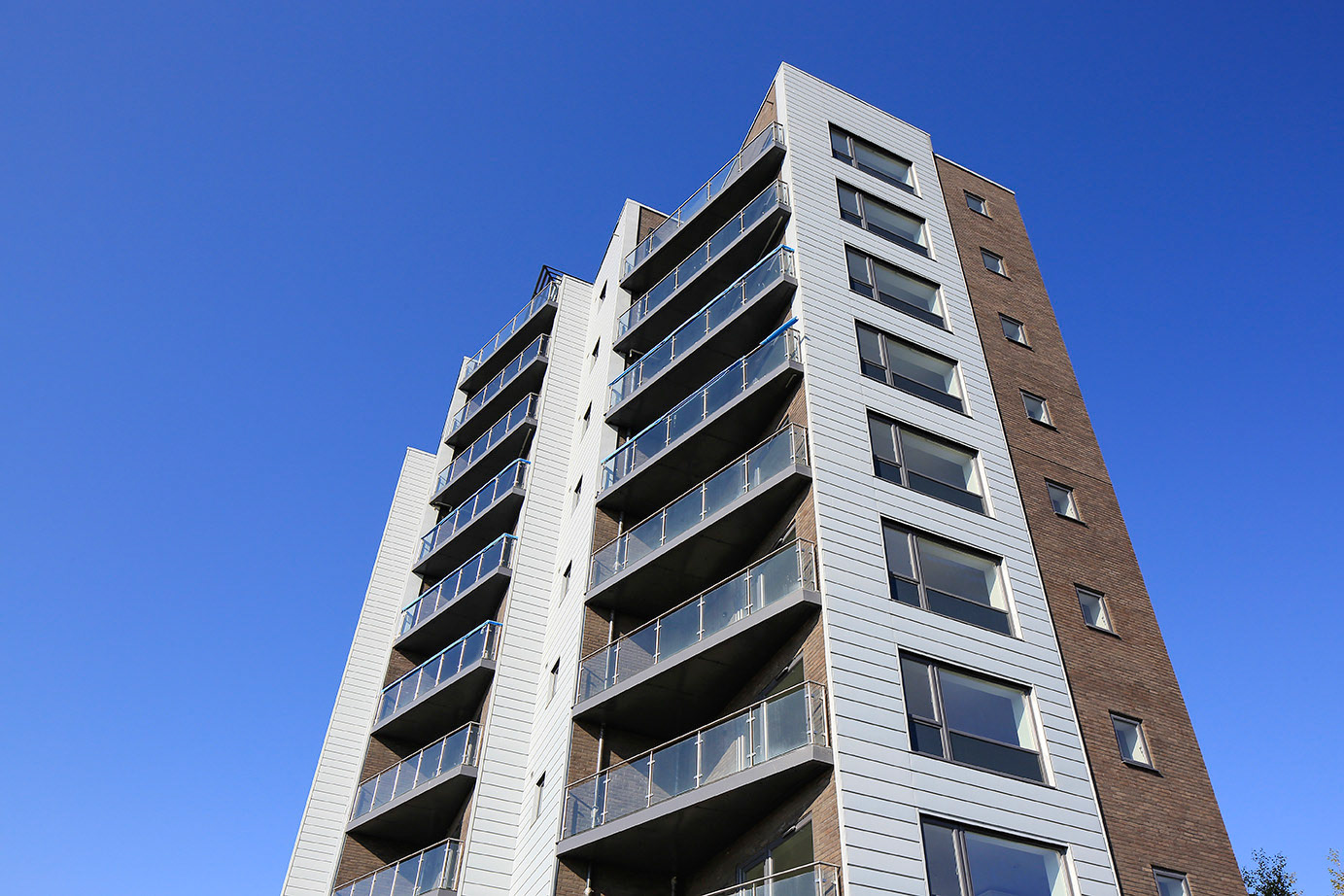

Completed Scheme 3

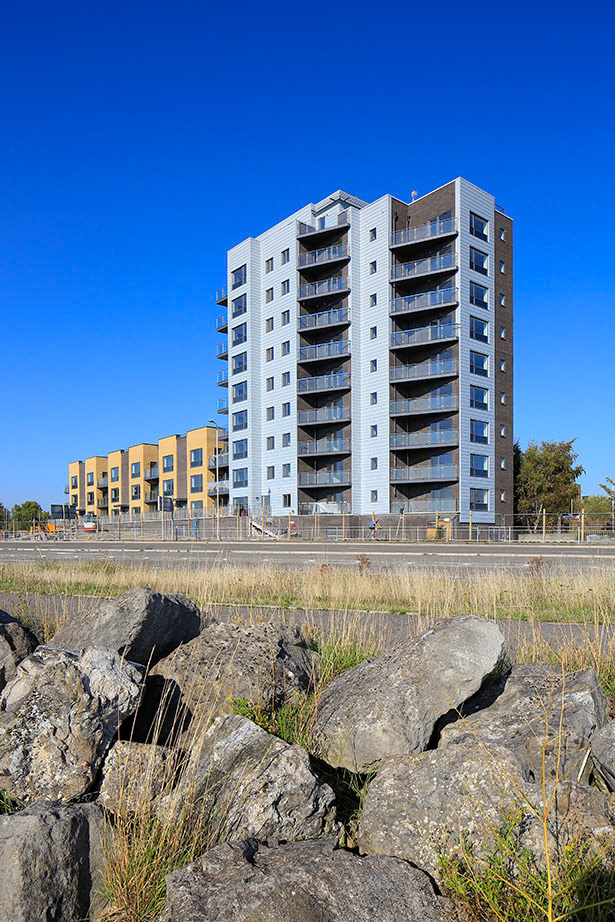

Completed Scheme 4
Completed Scheme 5
Completed Scheme 6
Completed Scheme 7
Completed Scheme 8
Completed Scheme 9
Completed Scheme 10
Completed Scheme 11

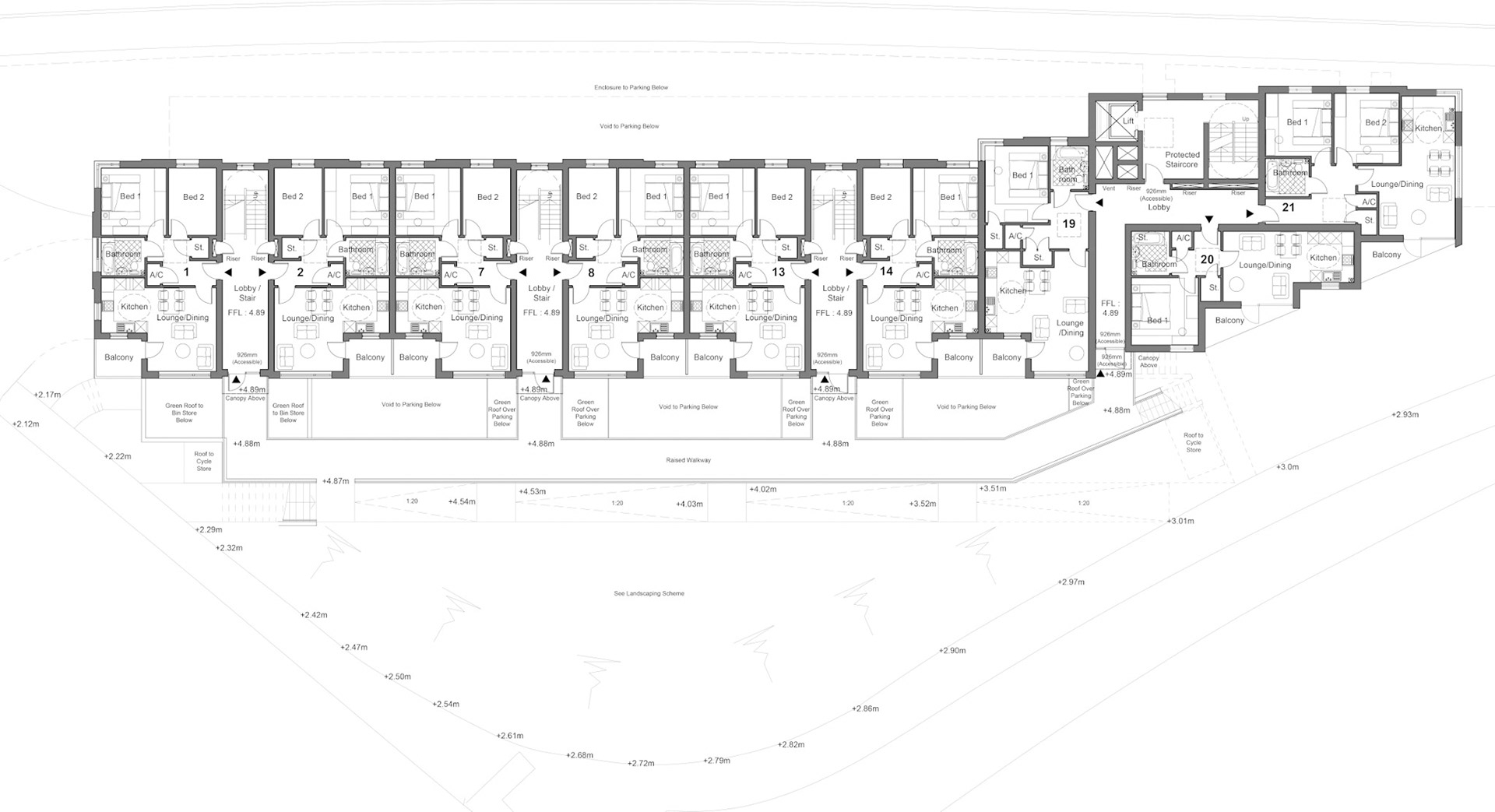

Planning - Upper Ground Floor

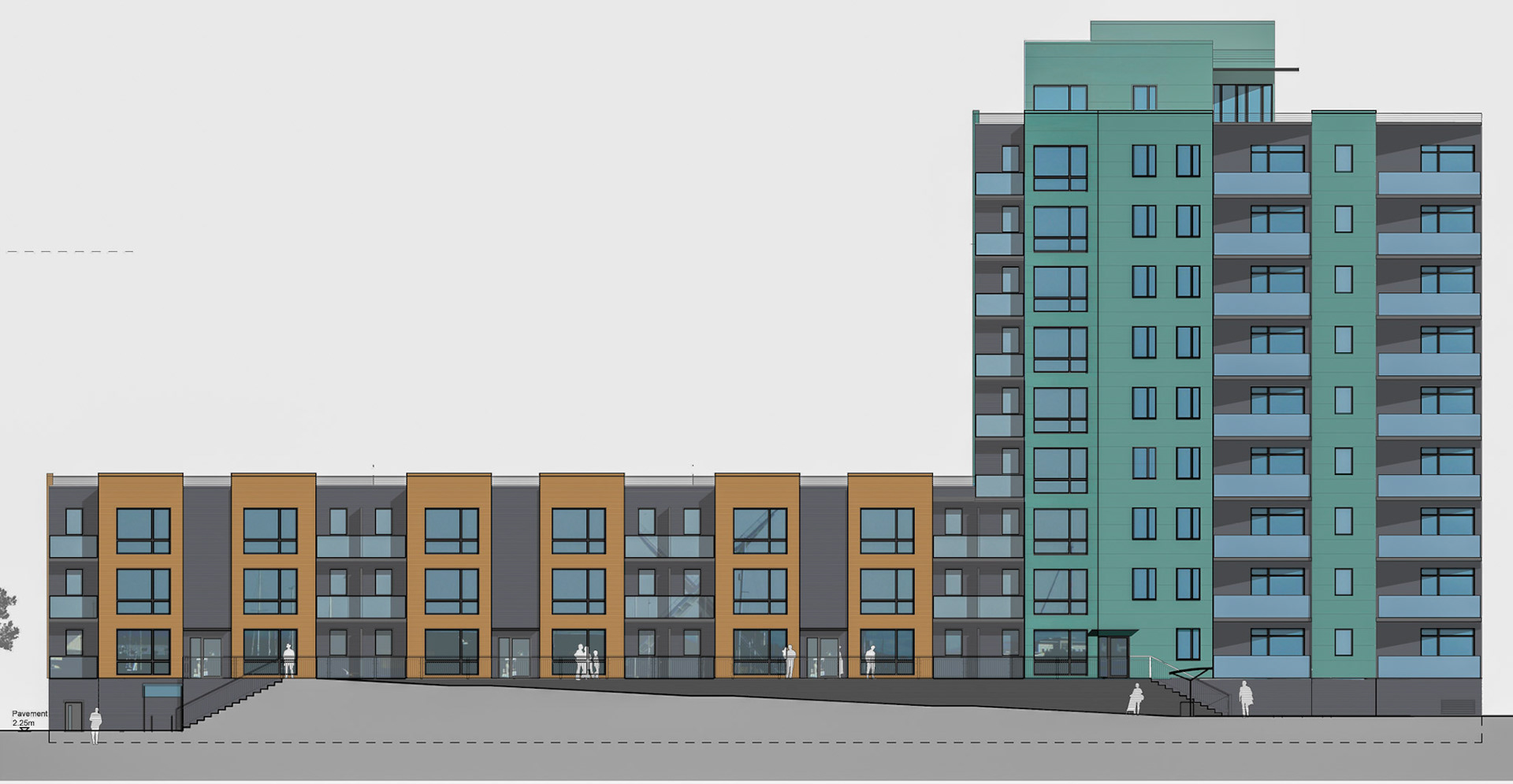

Planning - West Elevations
Planning - Illustration

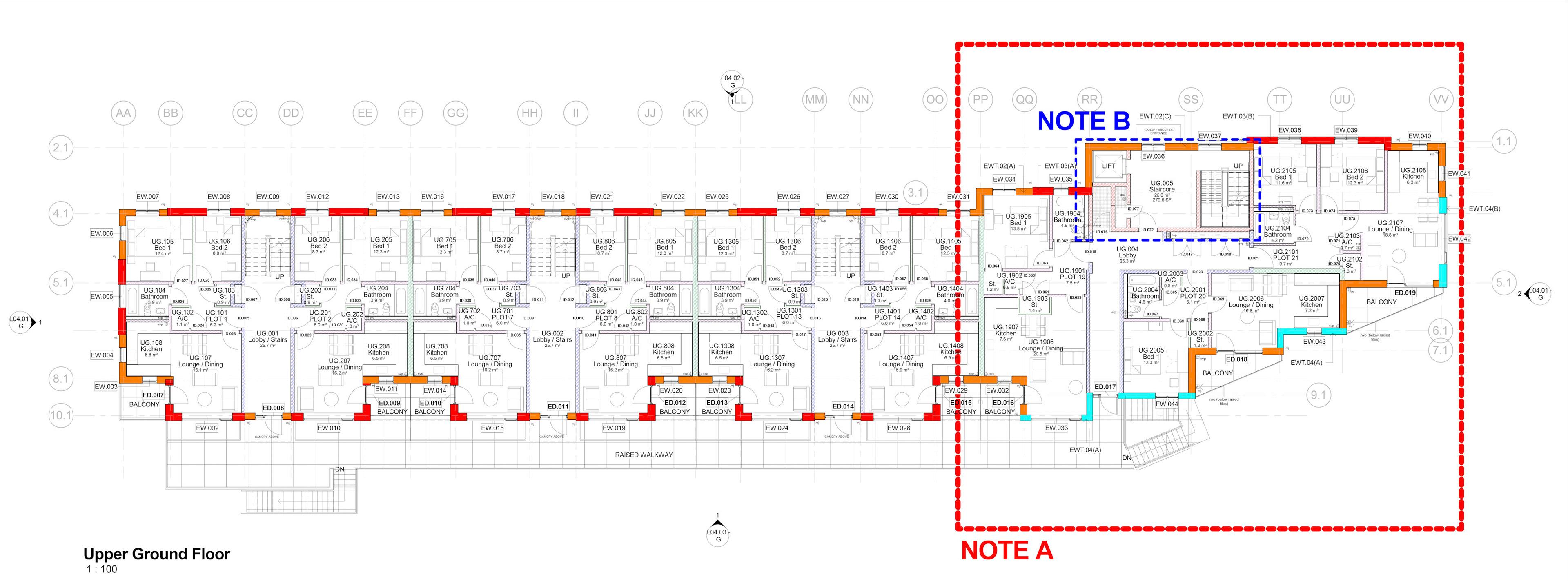

Working Drawings - GA Upper Ground Floor
Working Drawings - GA Fourth - Eighth Floor

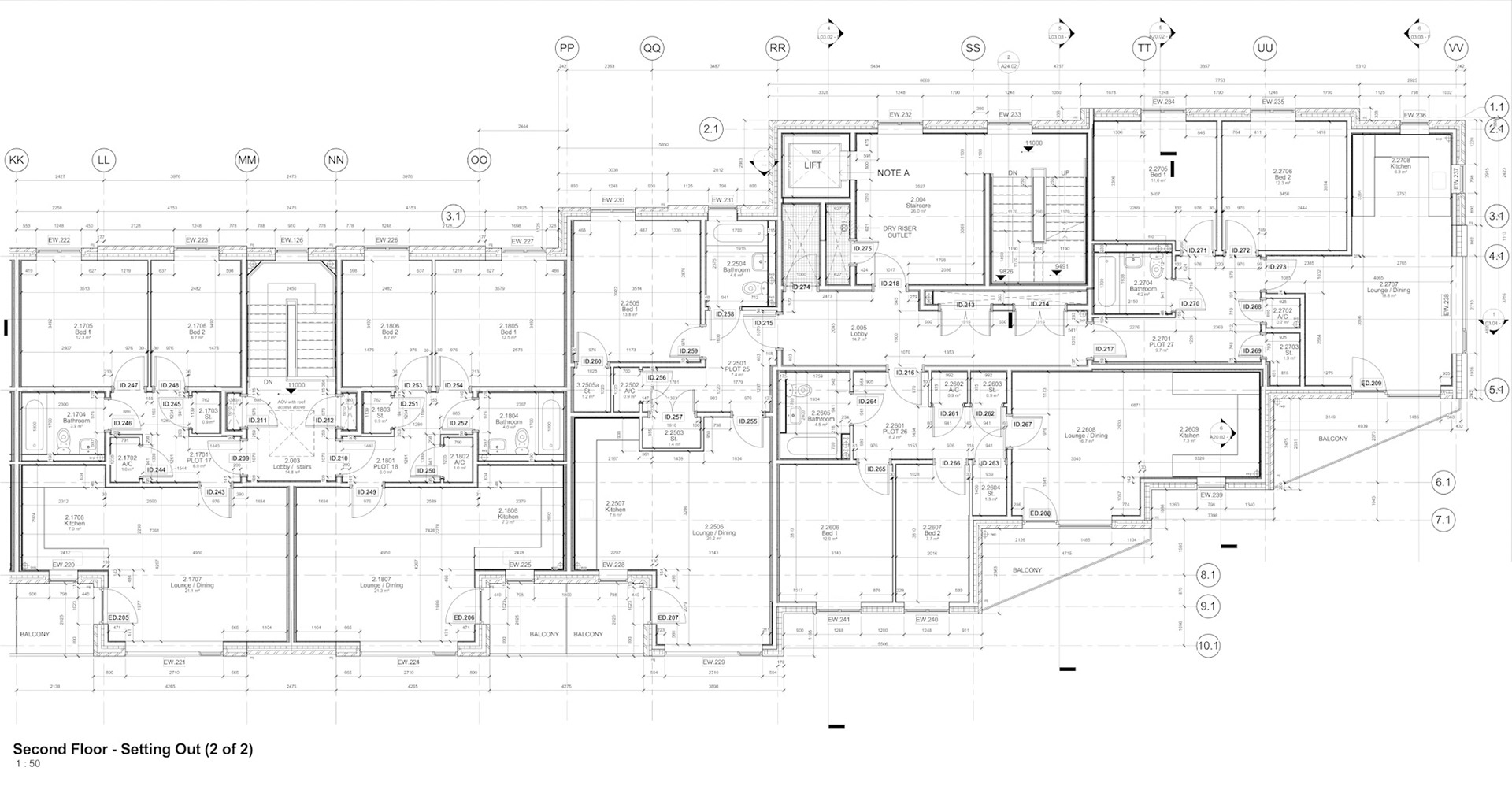

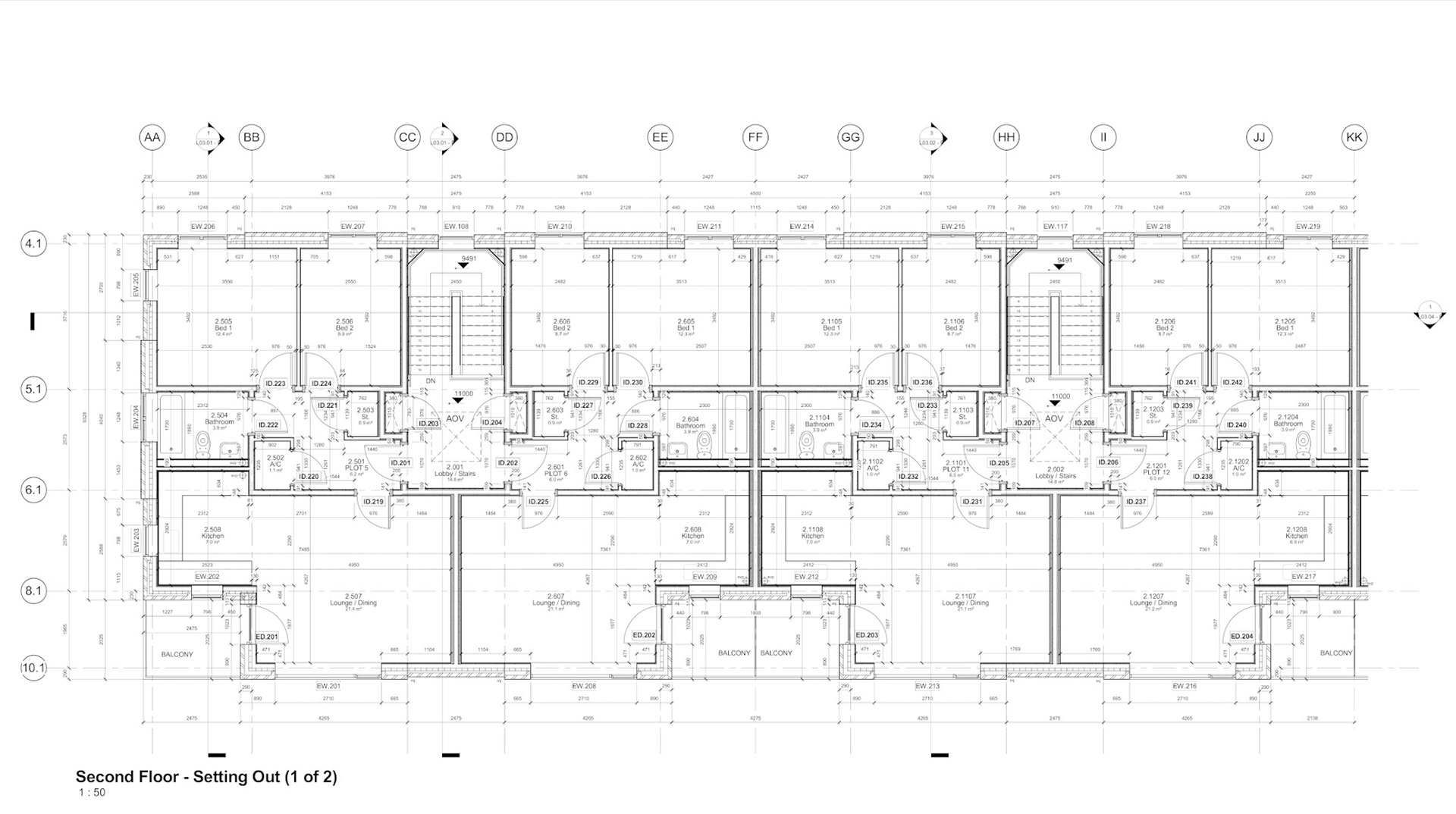

Working Drawings - Upper Ground Setting Out Plan (Partial 1 of 2)
Working Drawings - Upper Ground Setting Out Plan (Partial 2 of 2)

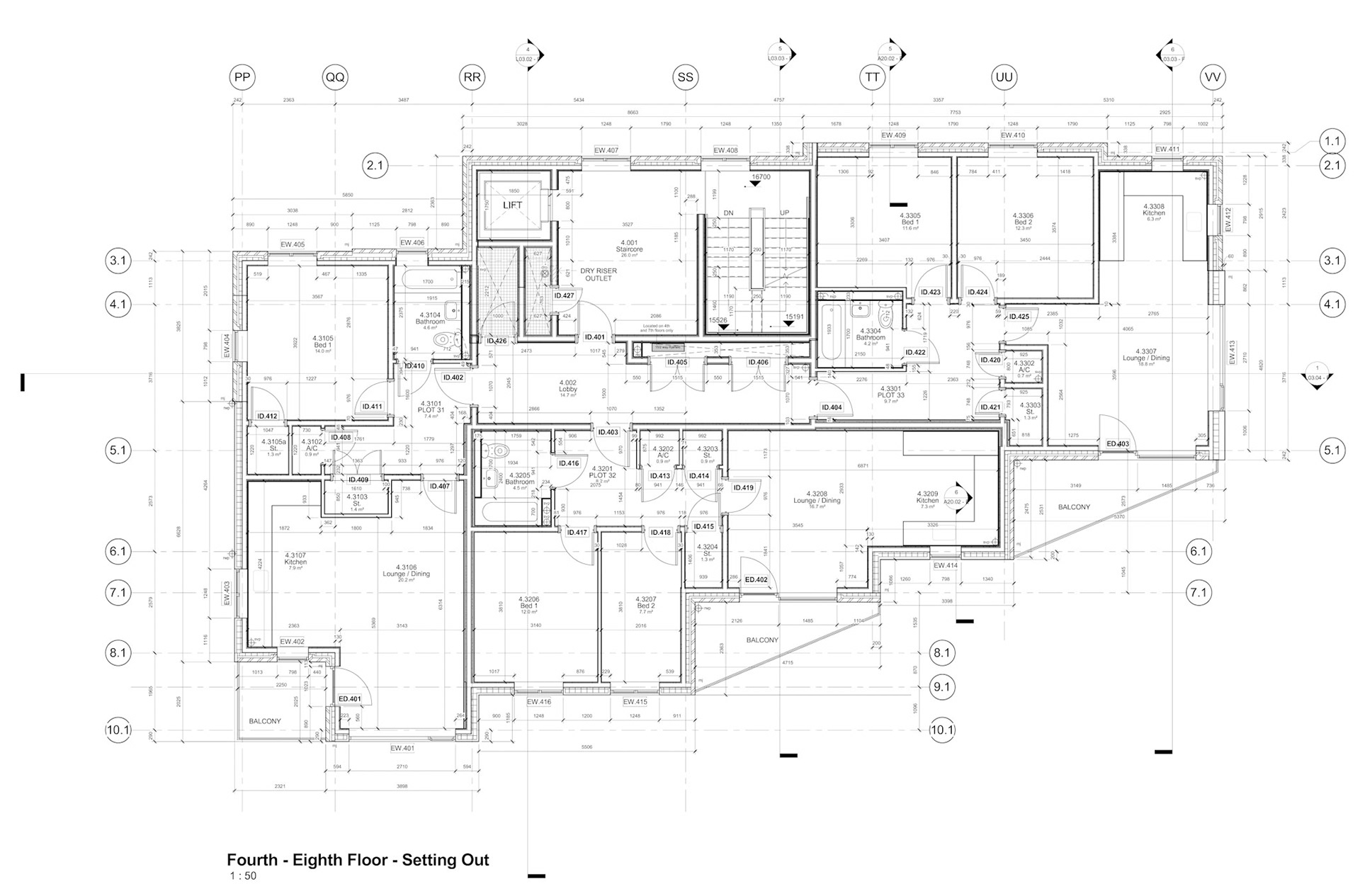

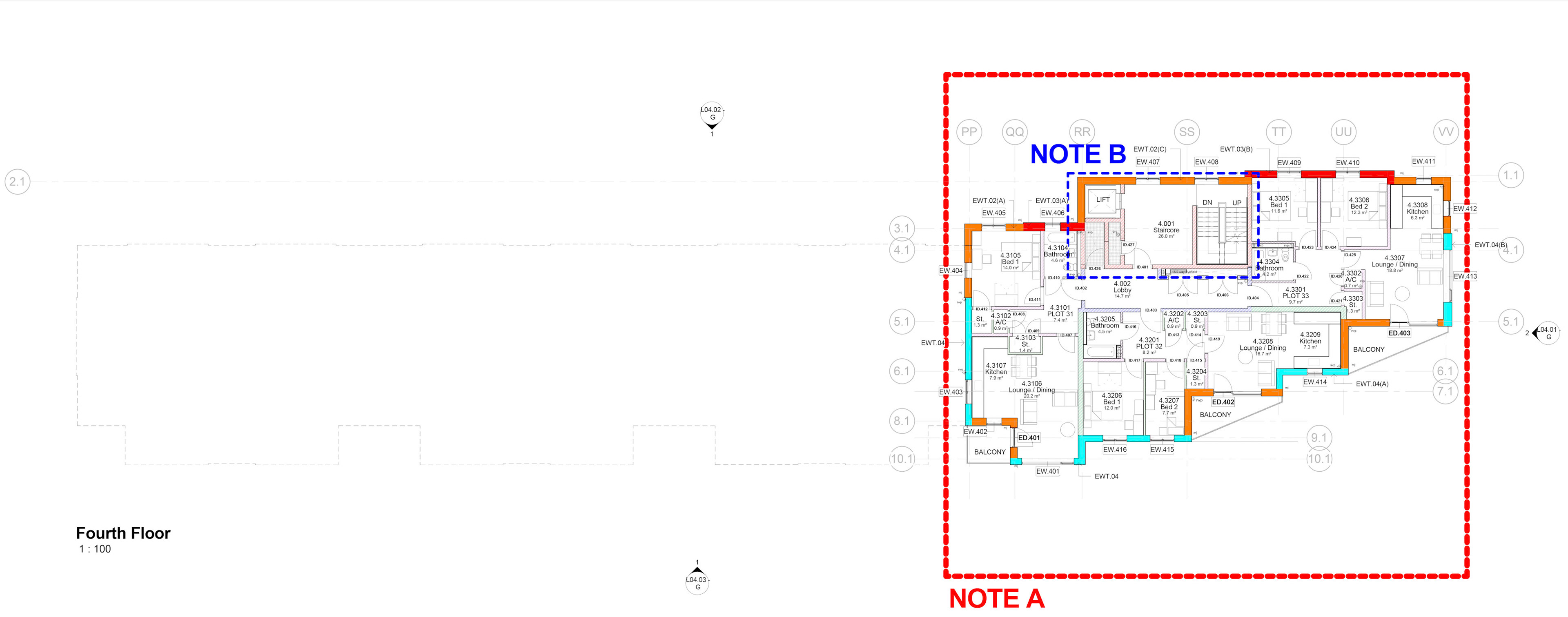

Working Drawings - Fourth - Eighth Setting Out Plan

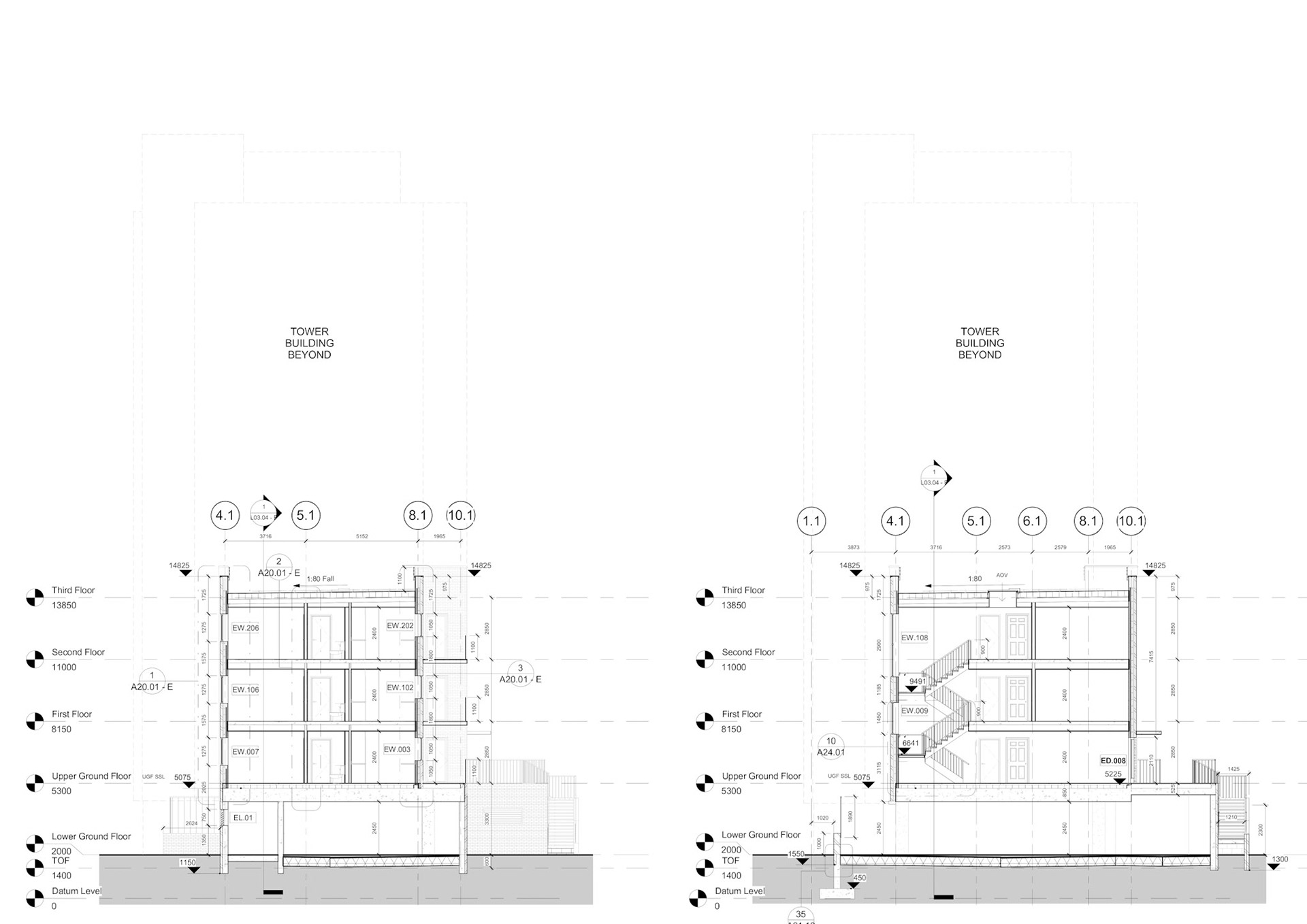

Working Drawings - Lower Element Cross Sections
Working Drawings - Lower Element Cross Section

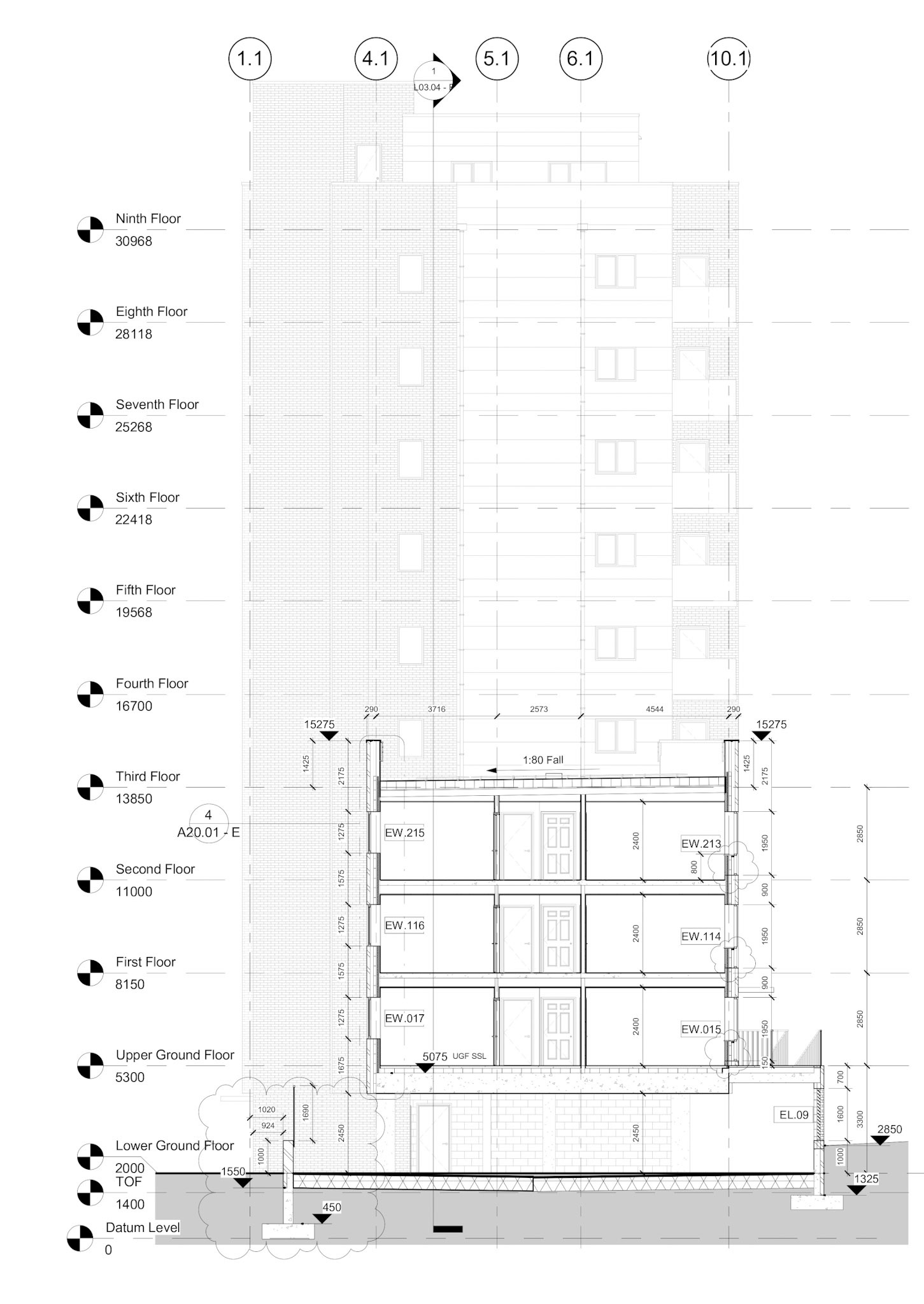

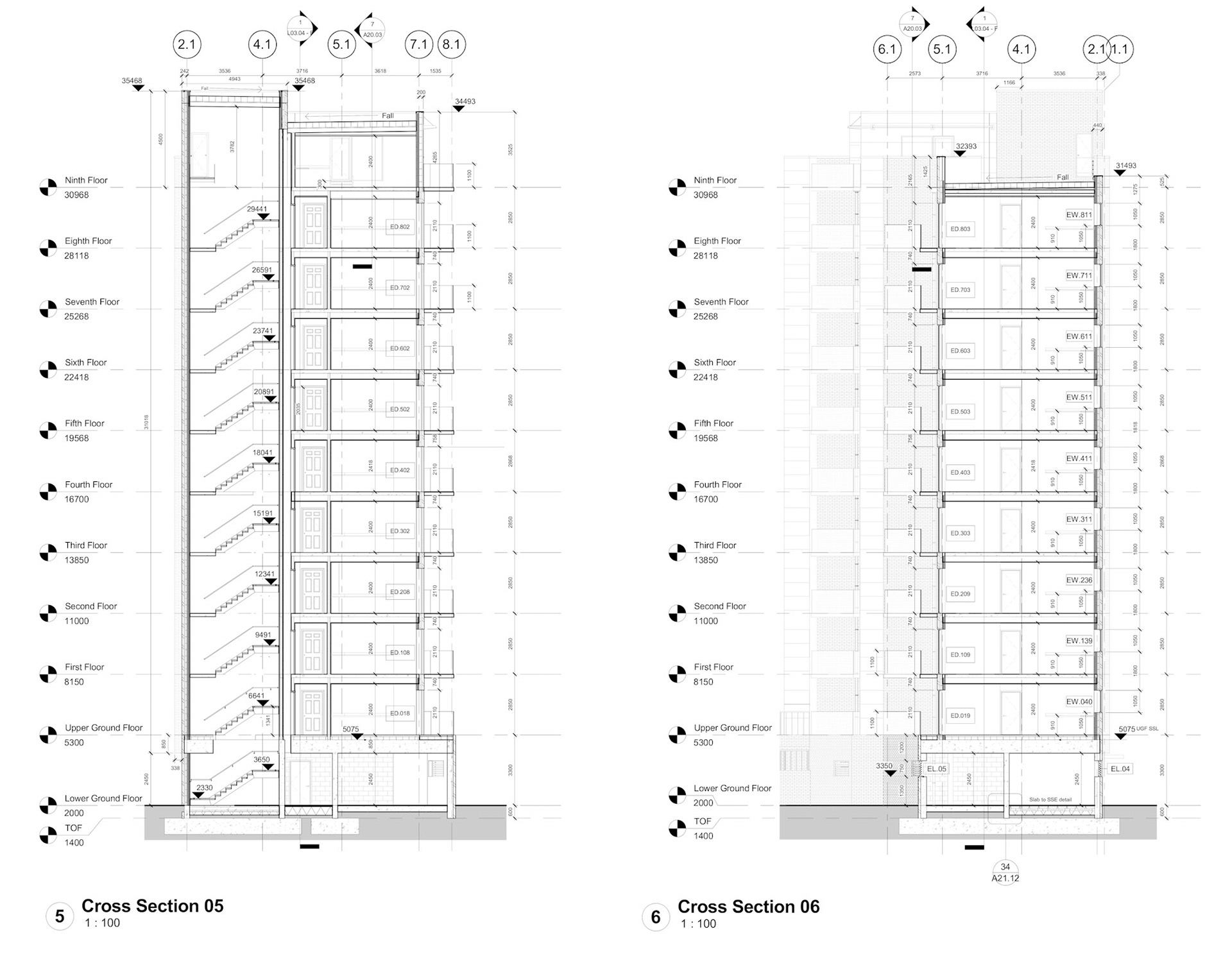

Working Drawings - Tower Cross Sections

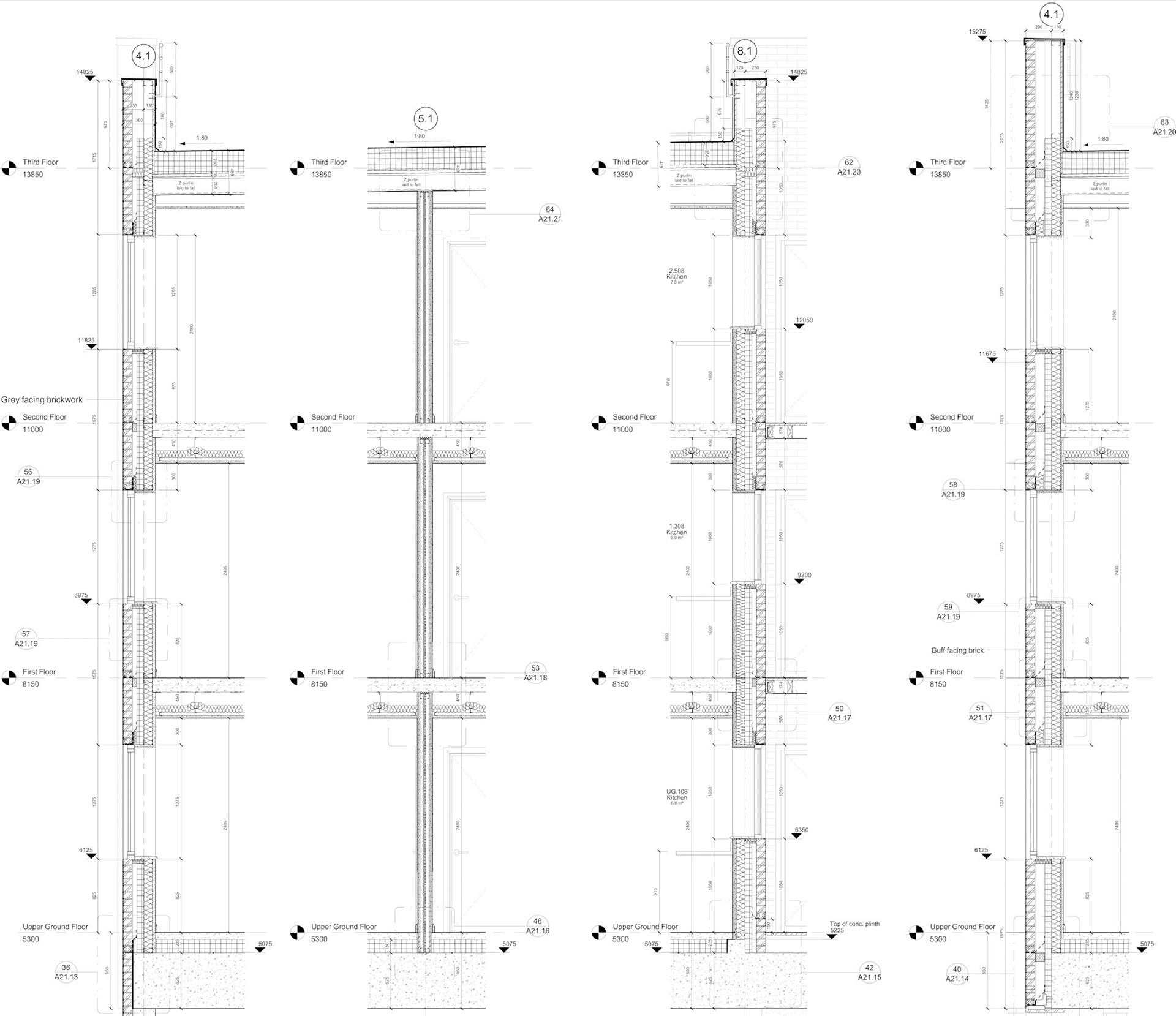

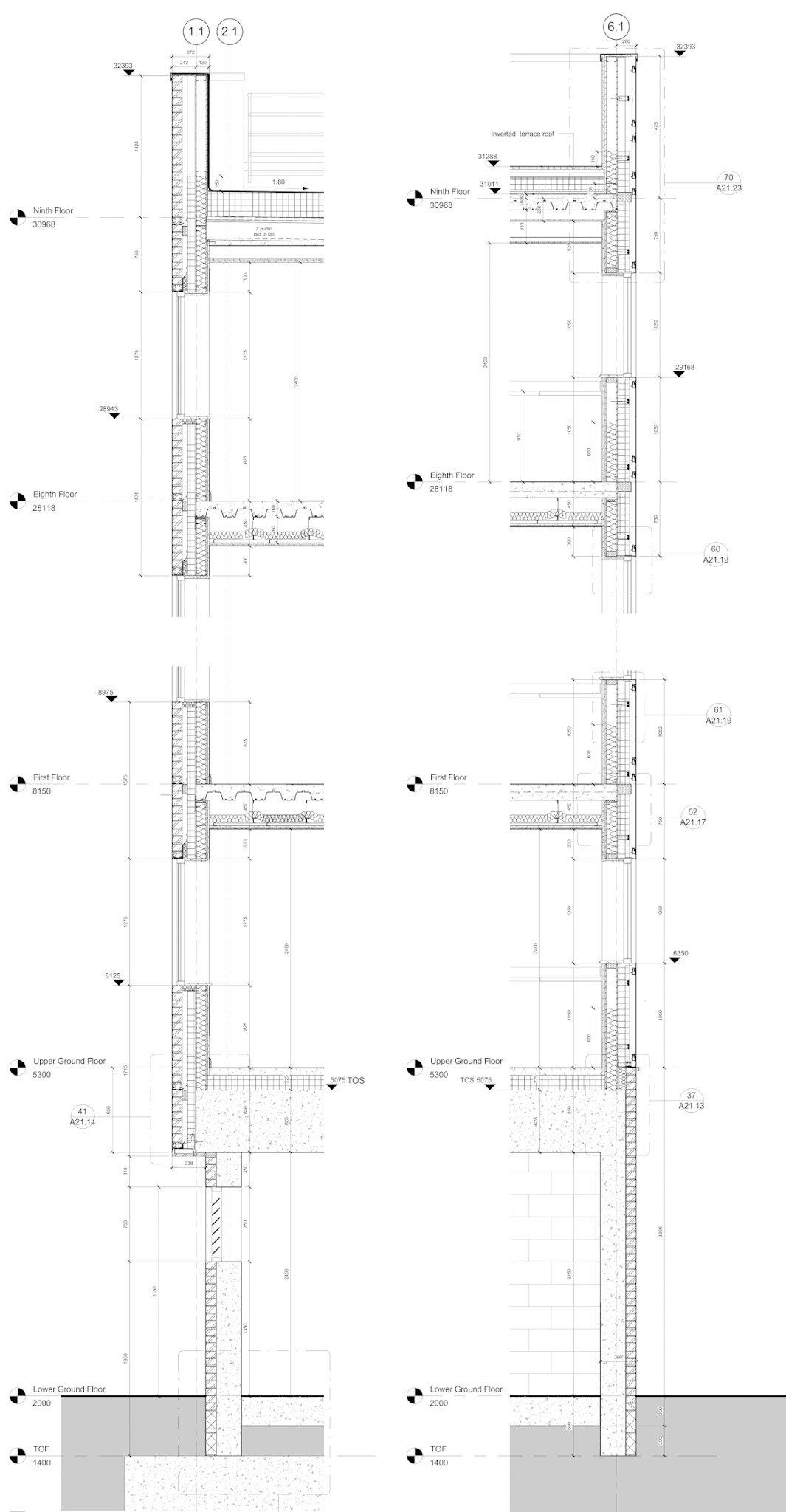

Working Drawings - 1:20 External Wall Sections
