Location
Cowplain, Hampshire
Architects
Alex Watson
Client
Private
Info
I was commissioned by a private client to re-configure their existing kitchen + dining arrangement with the addition of a new rear extension to their semi detached property. I prepared all full set of drawings for the permitted development and developed a set of construction drawings for a building regulations application, working closely with the builder to achieve the clients requirements.
Status
Completed Spring 2017

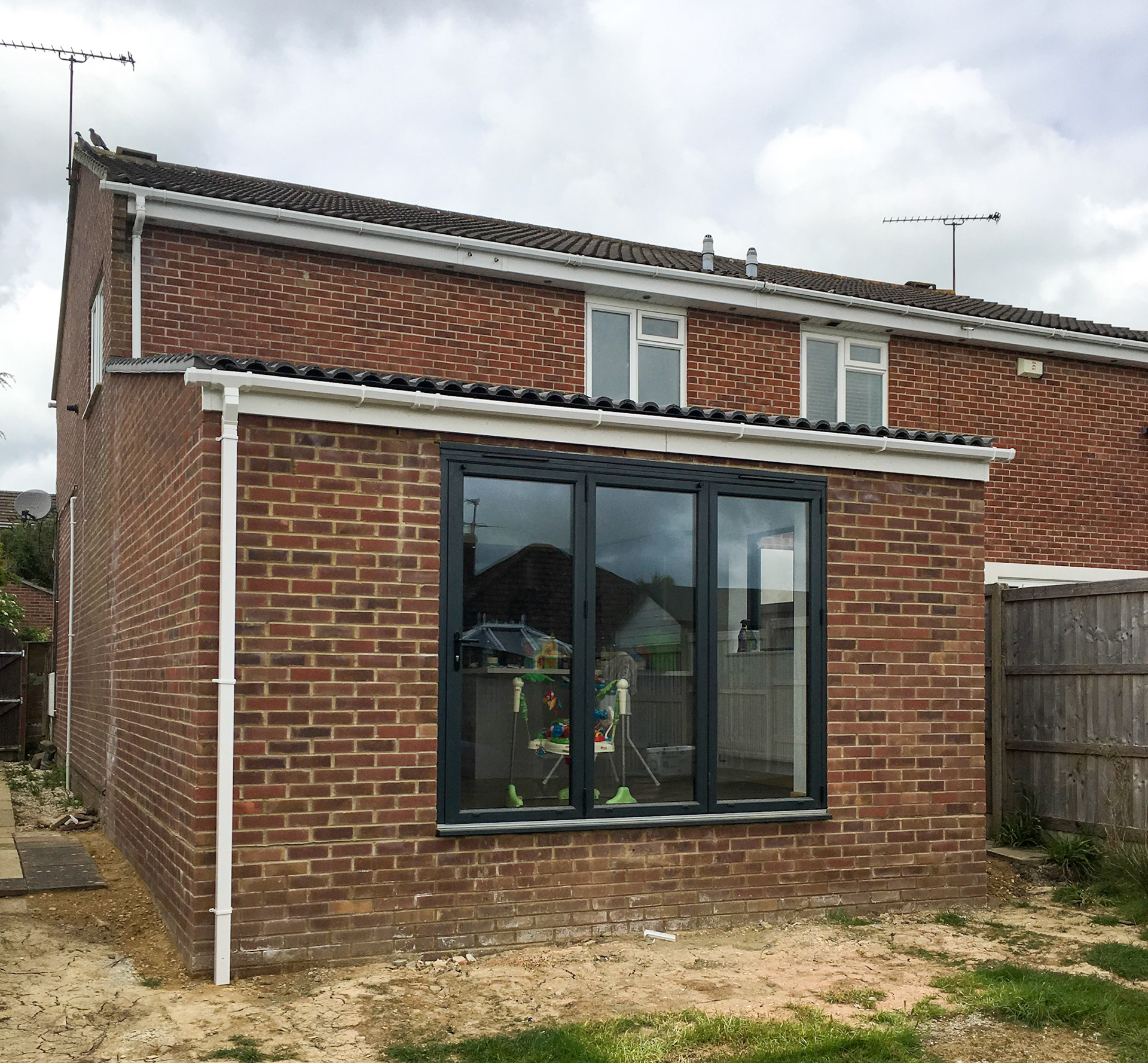

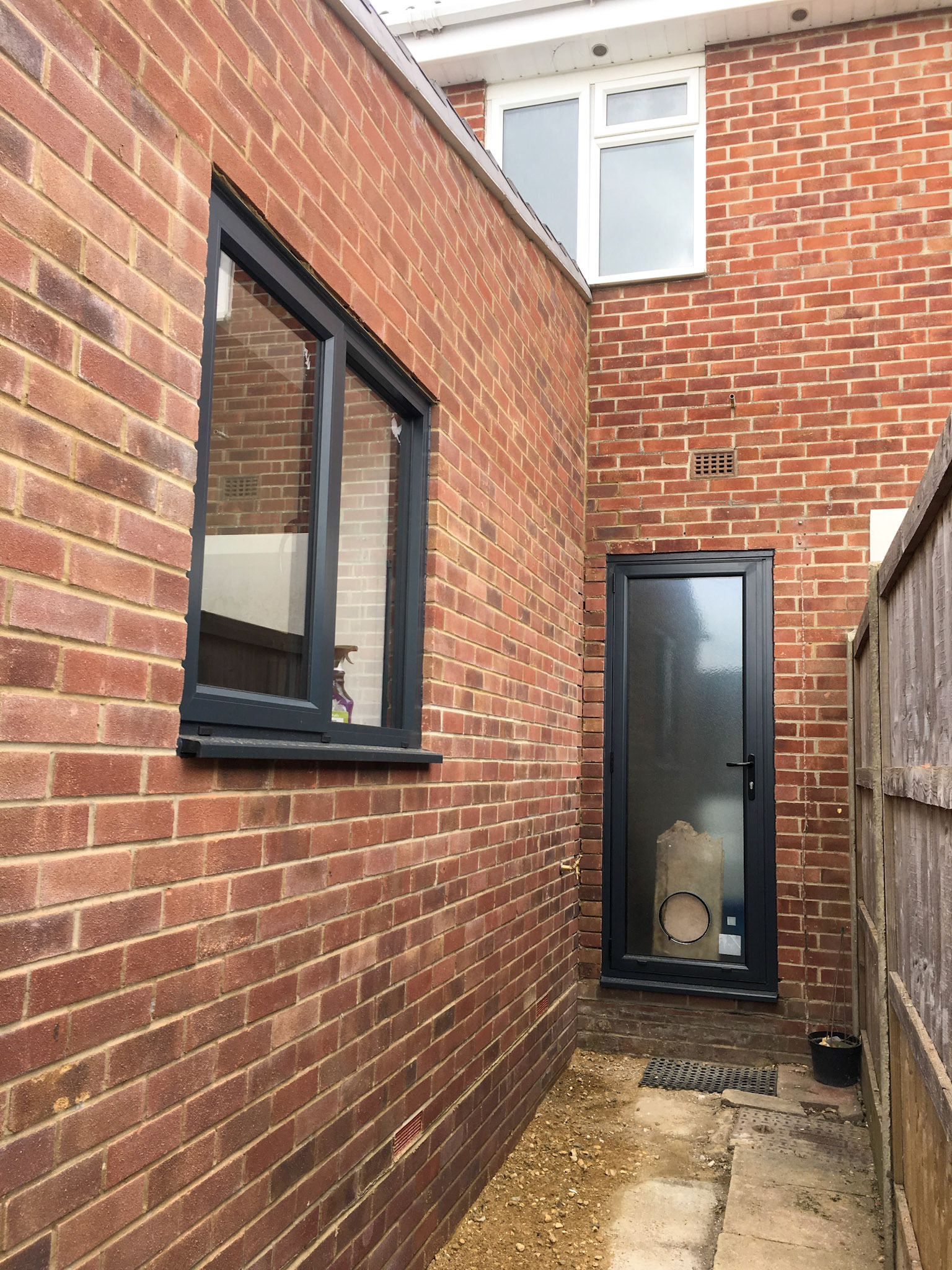

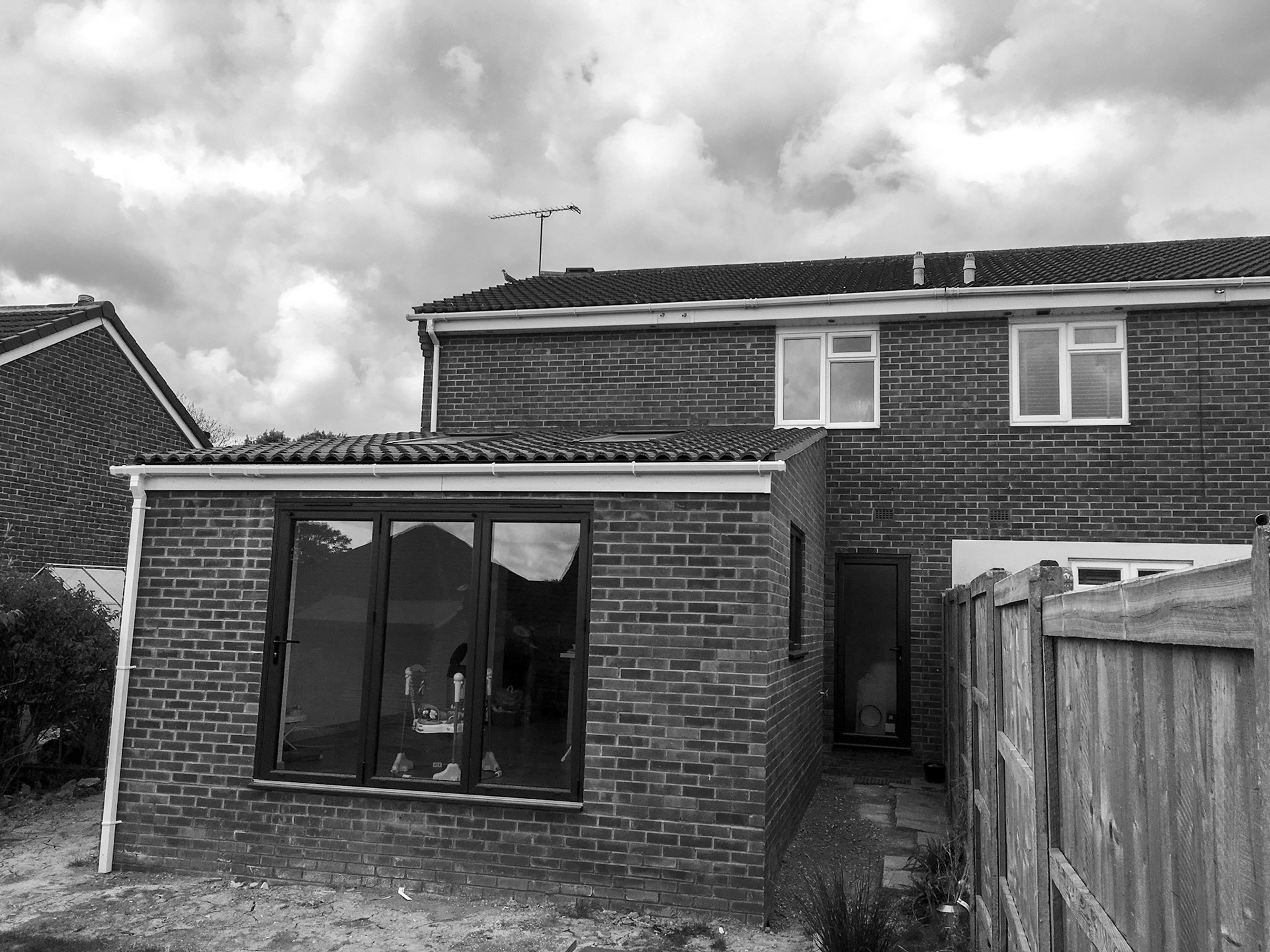

Completed Exterior 1

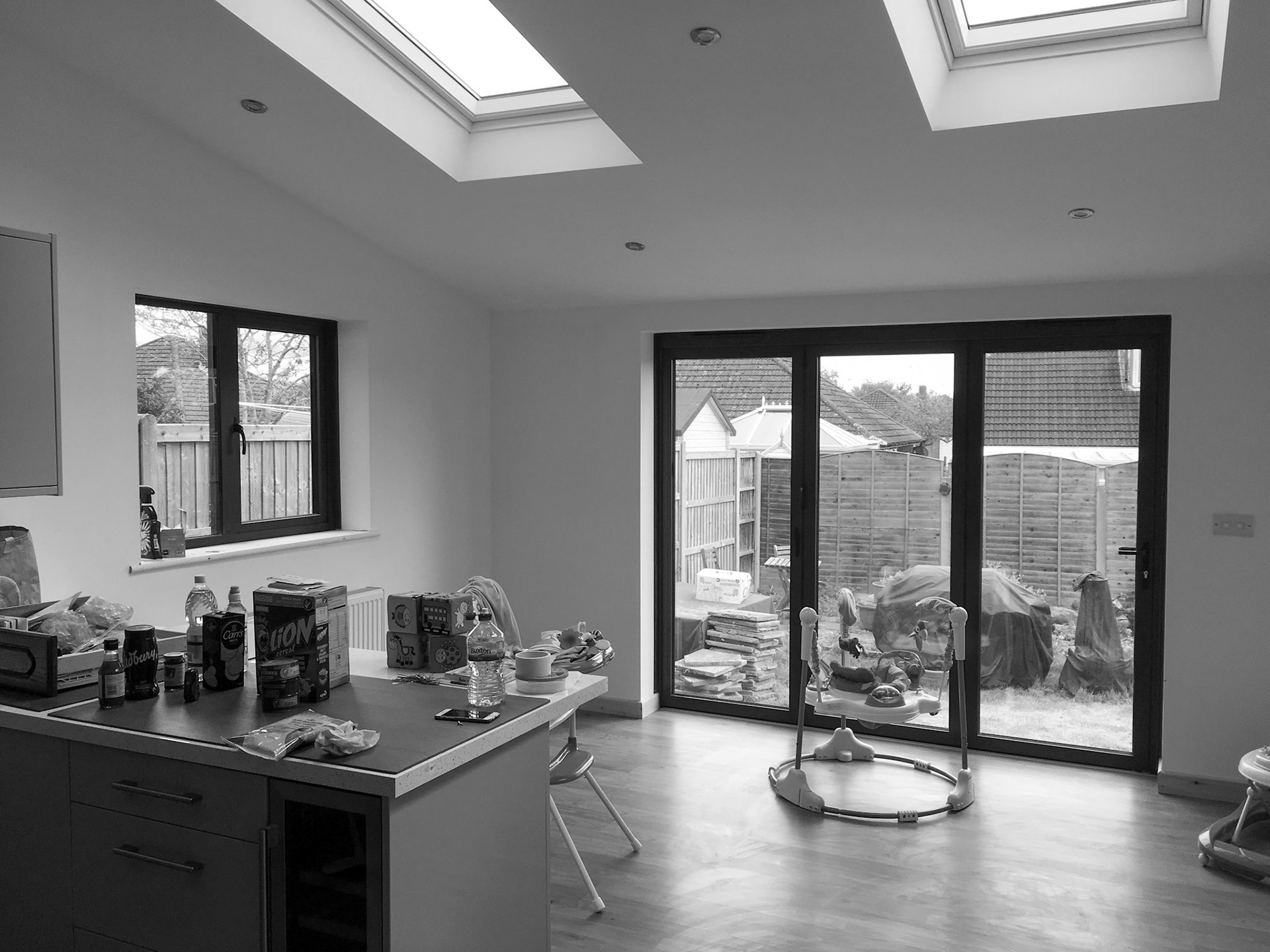

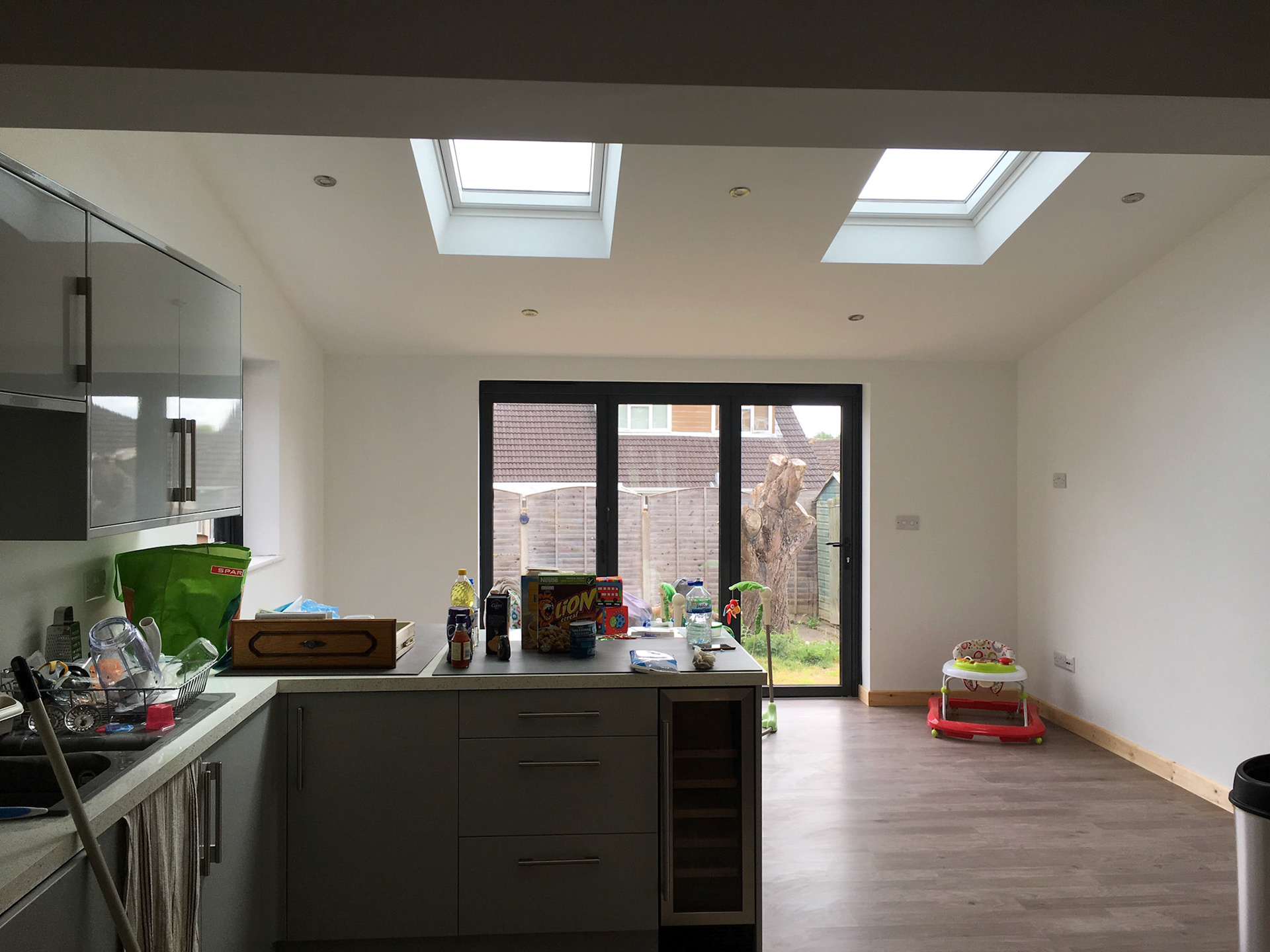

Completed Interior 1 - in use
Completed Interior 2 - in use

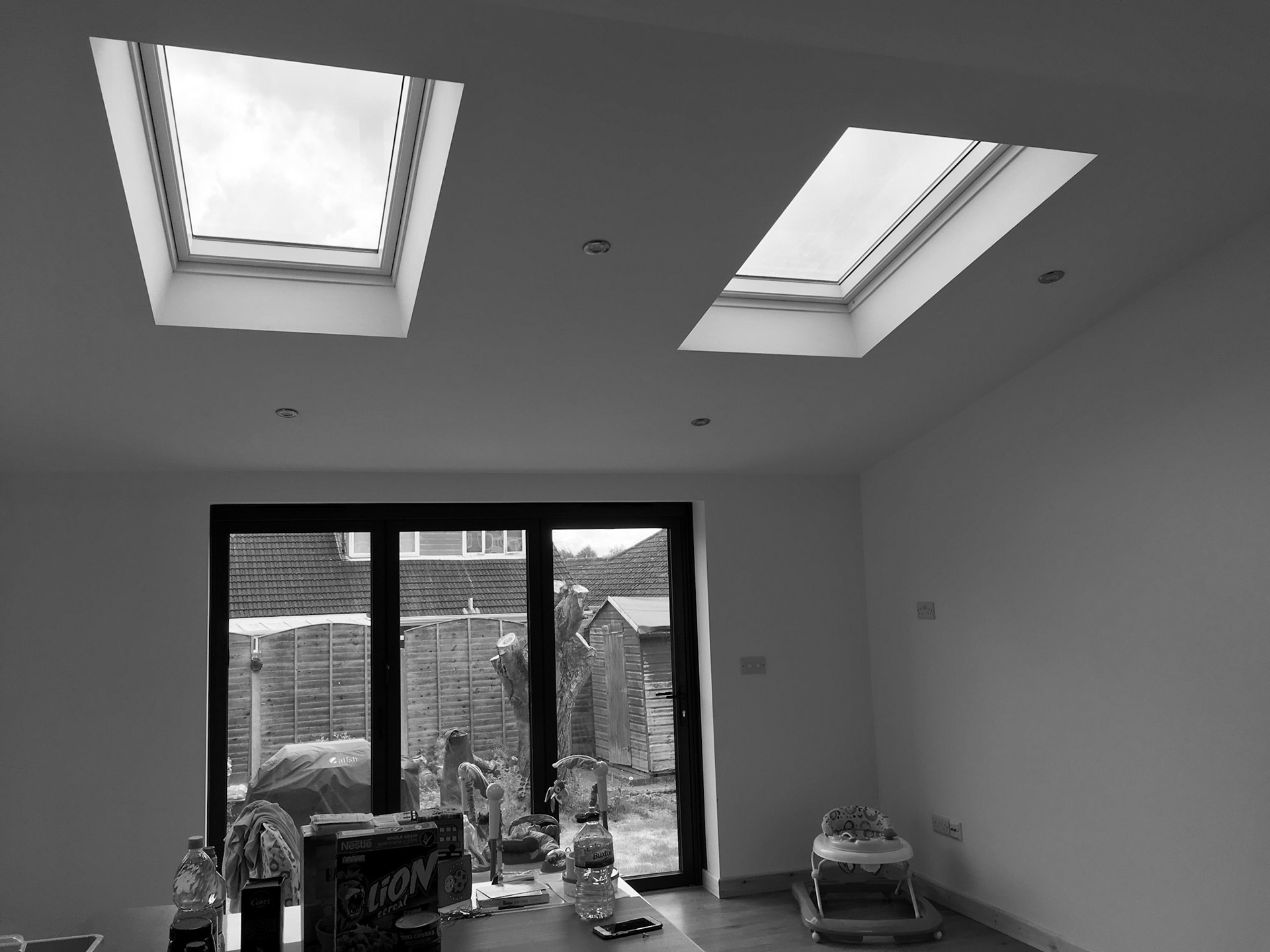

Completed Interior 3 - flooded with light
Completed Exterior 1
Completed Interior 4 - in use
Completed Exterior 1
Completed Exterior 1

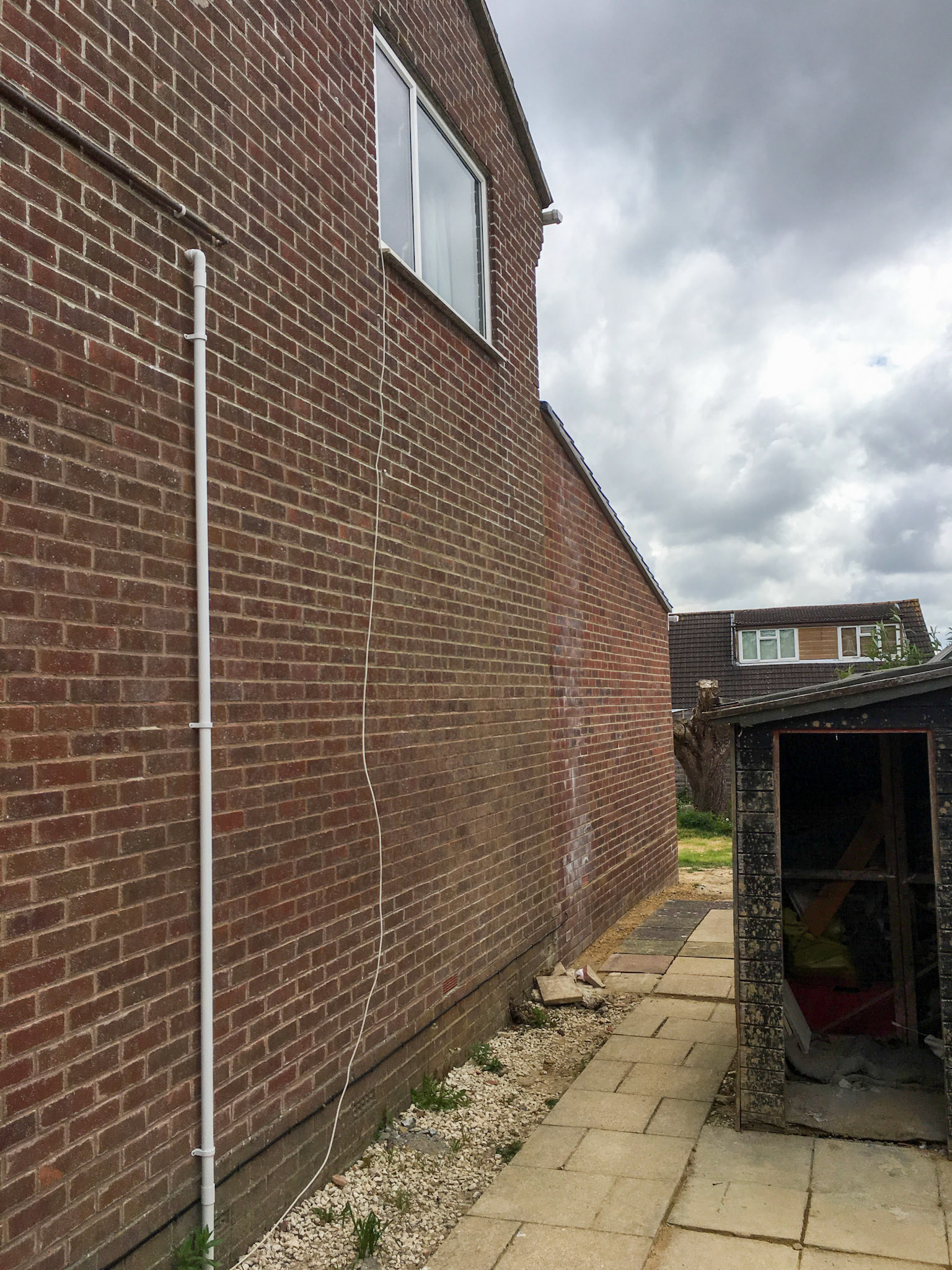

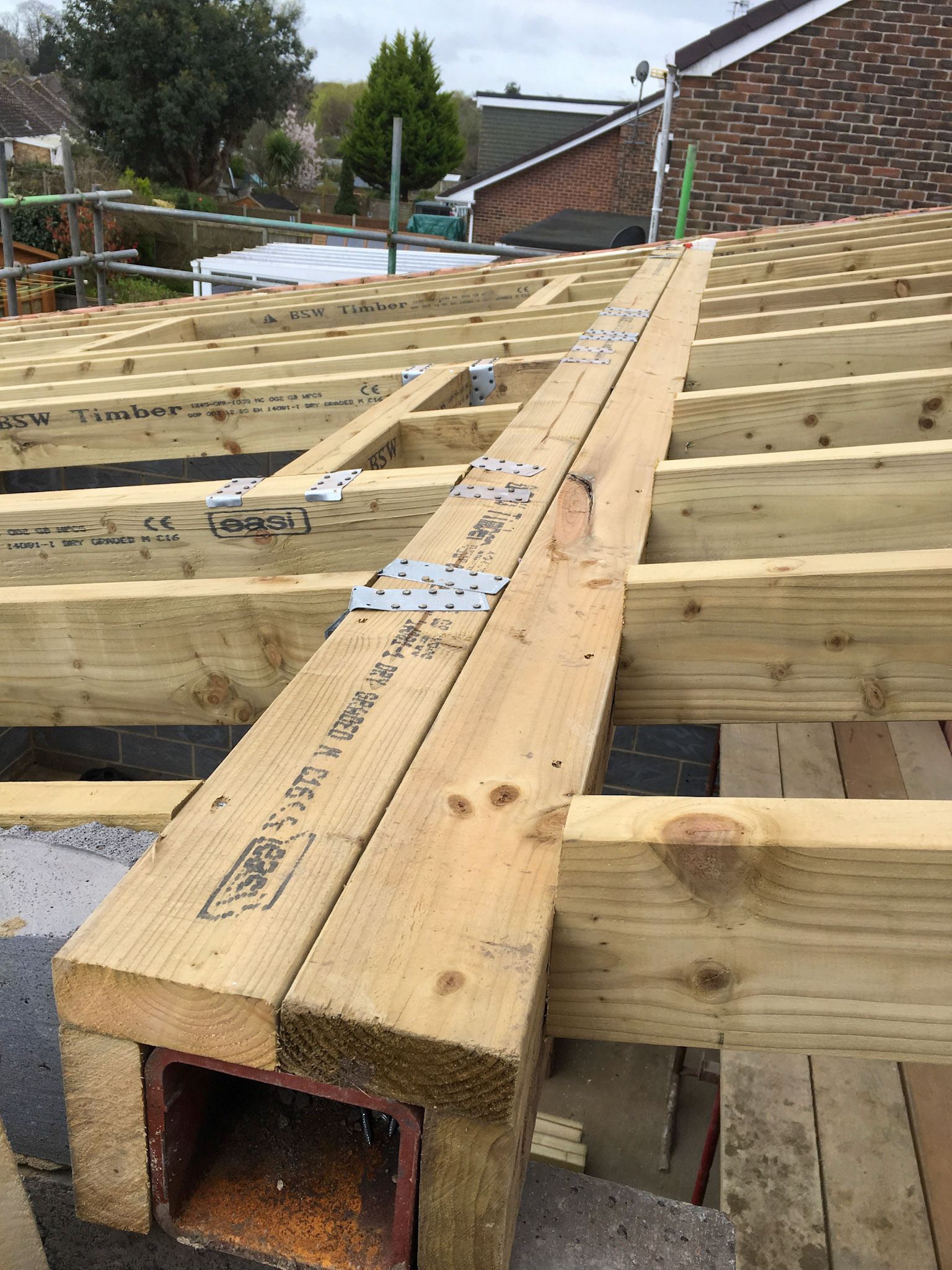

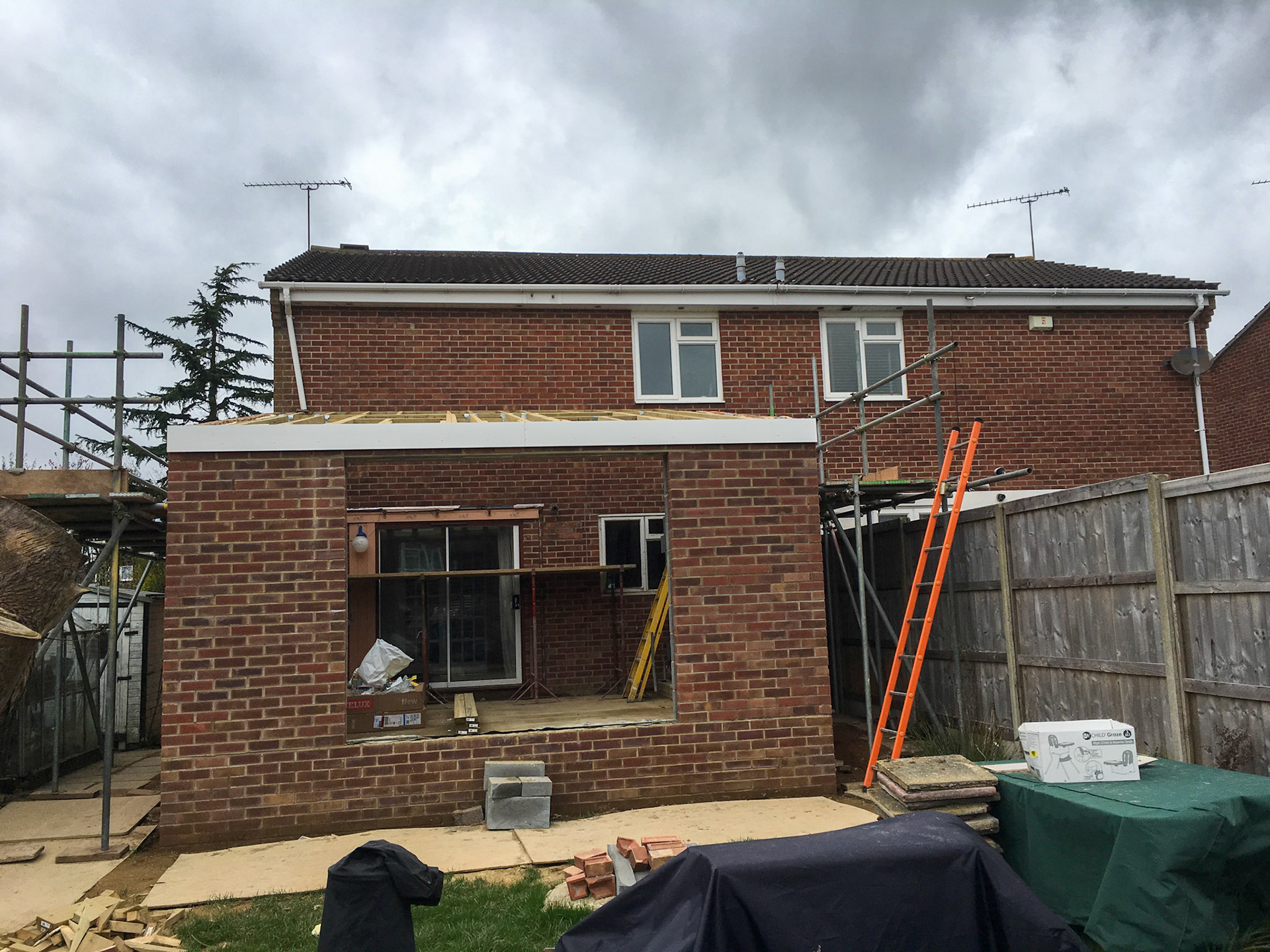

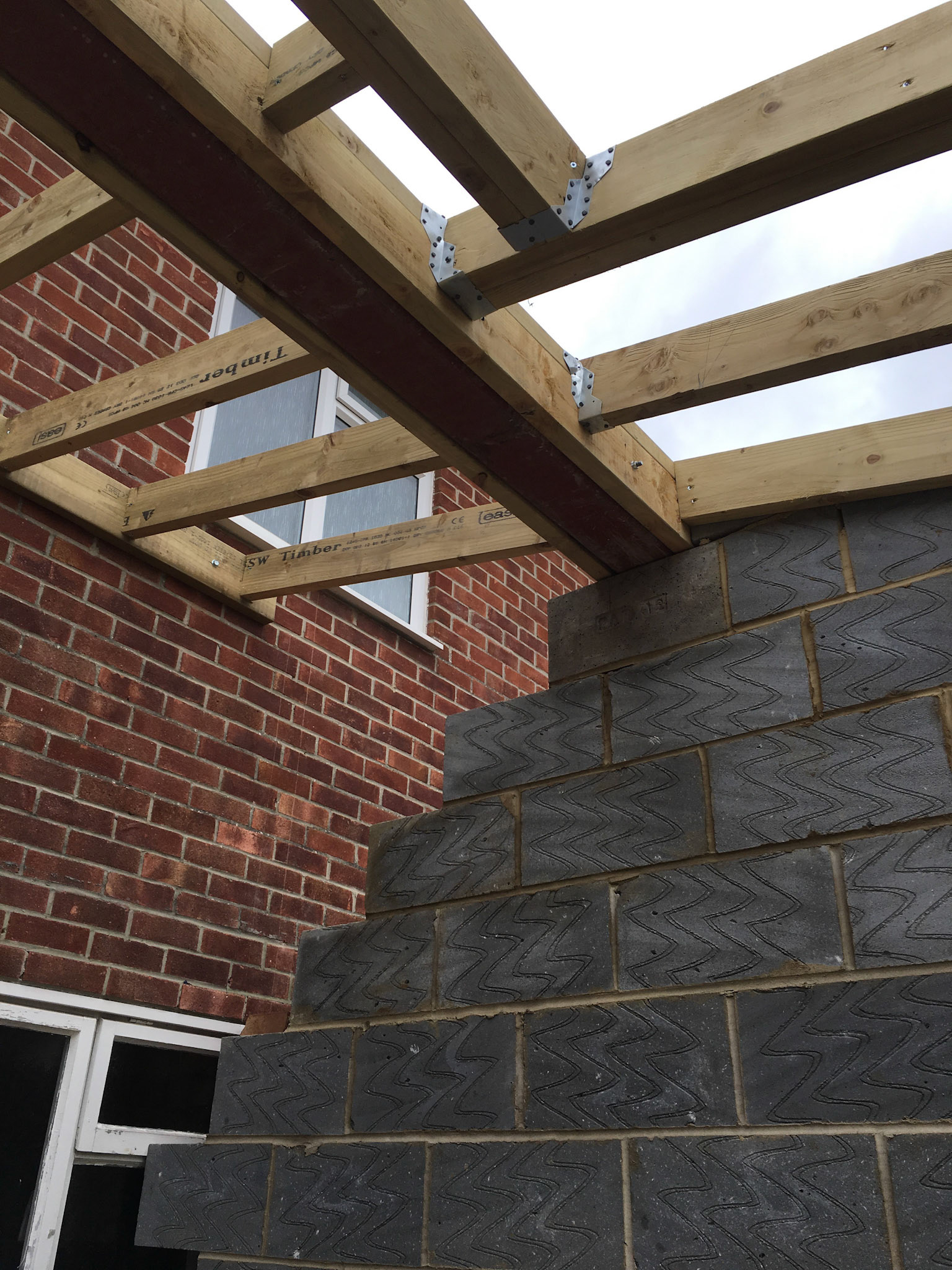

Site progress 1
Site progress 2
Site progress 3
Site progress 4

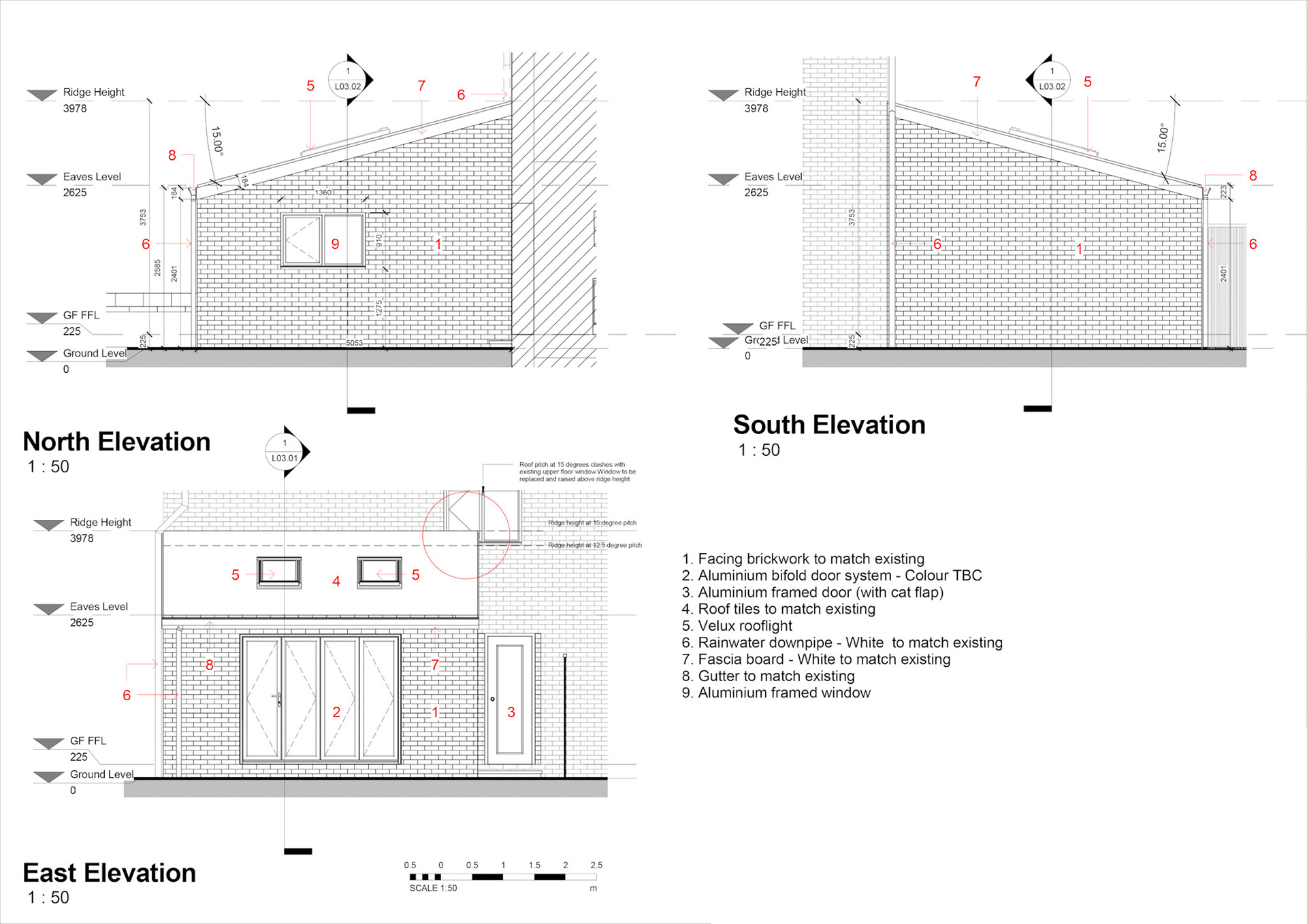

Proposed Elevations

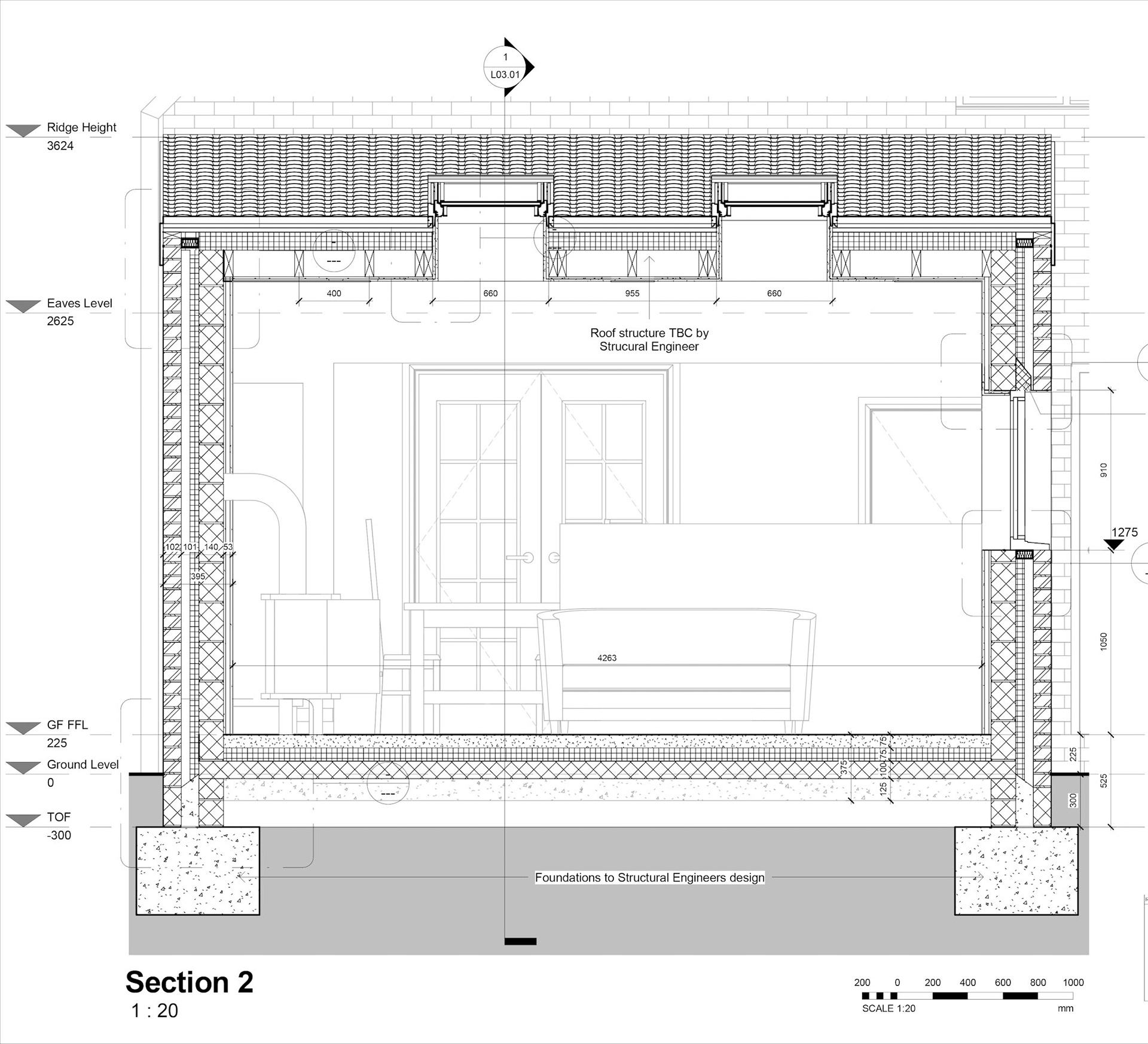

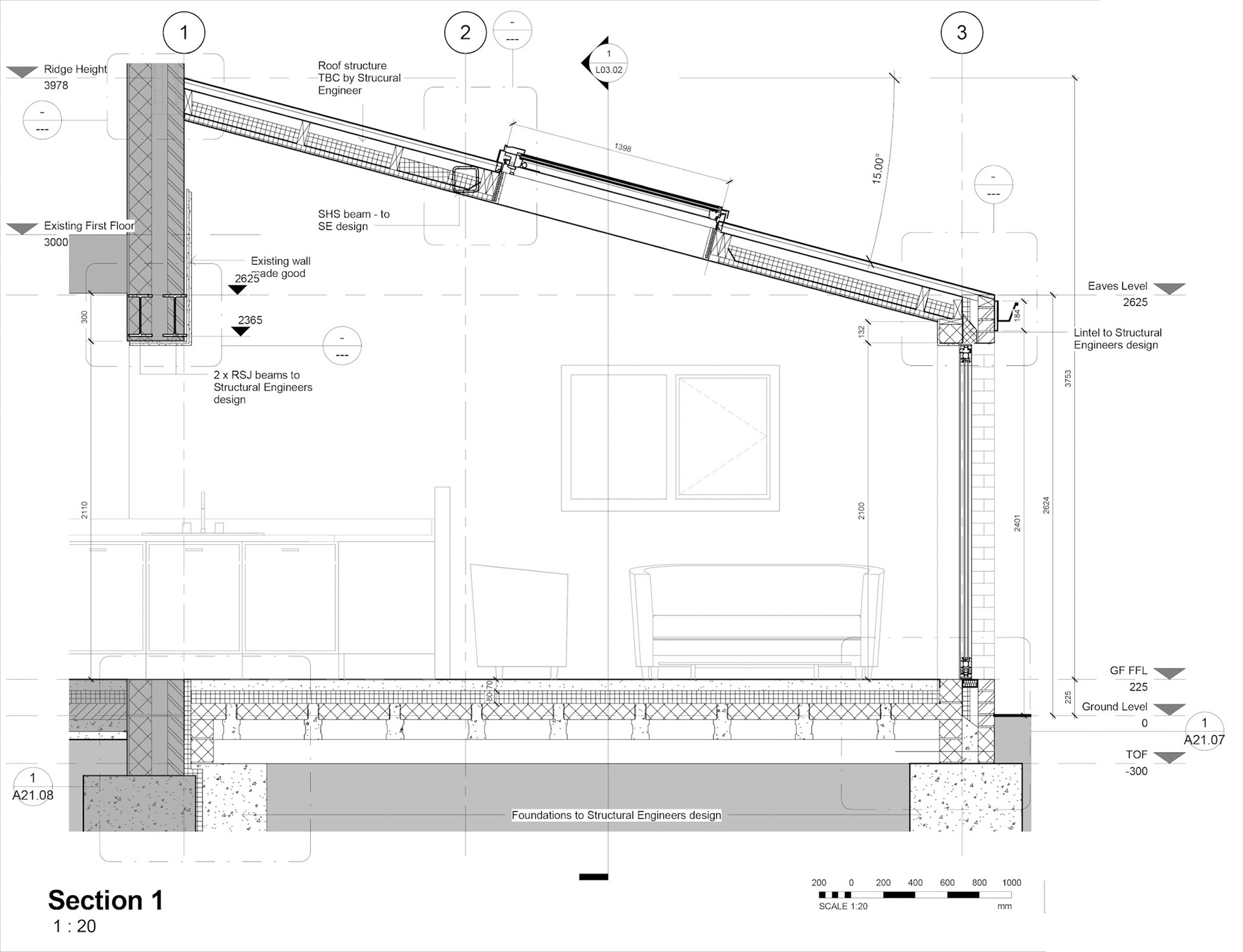

Working Drawings - 1:20 Cross Section
Working Drawings - 1:20 Section

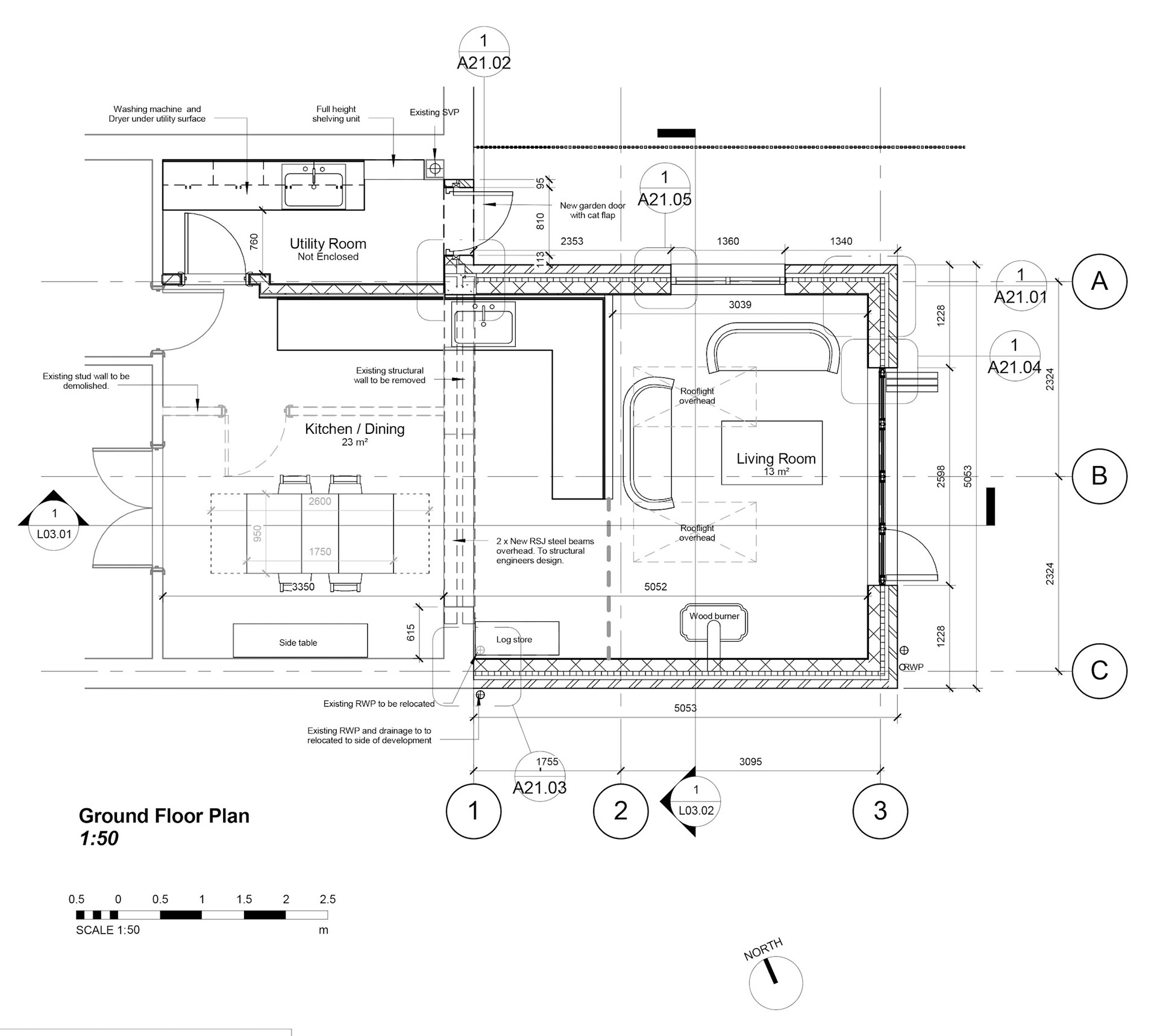

Working Drawings - Setting Out Plan

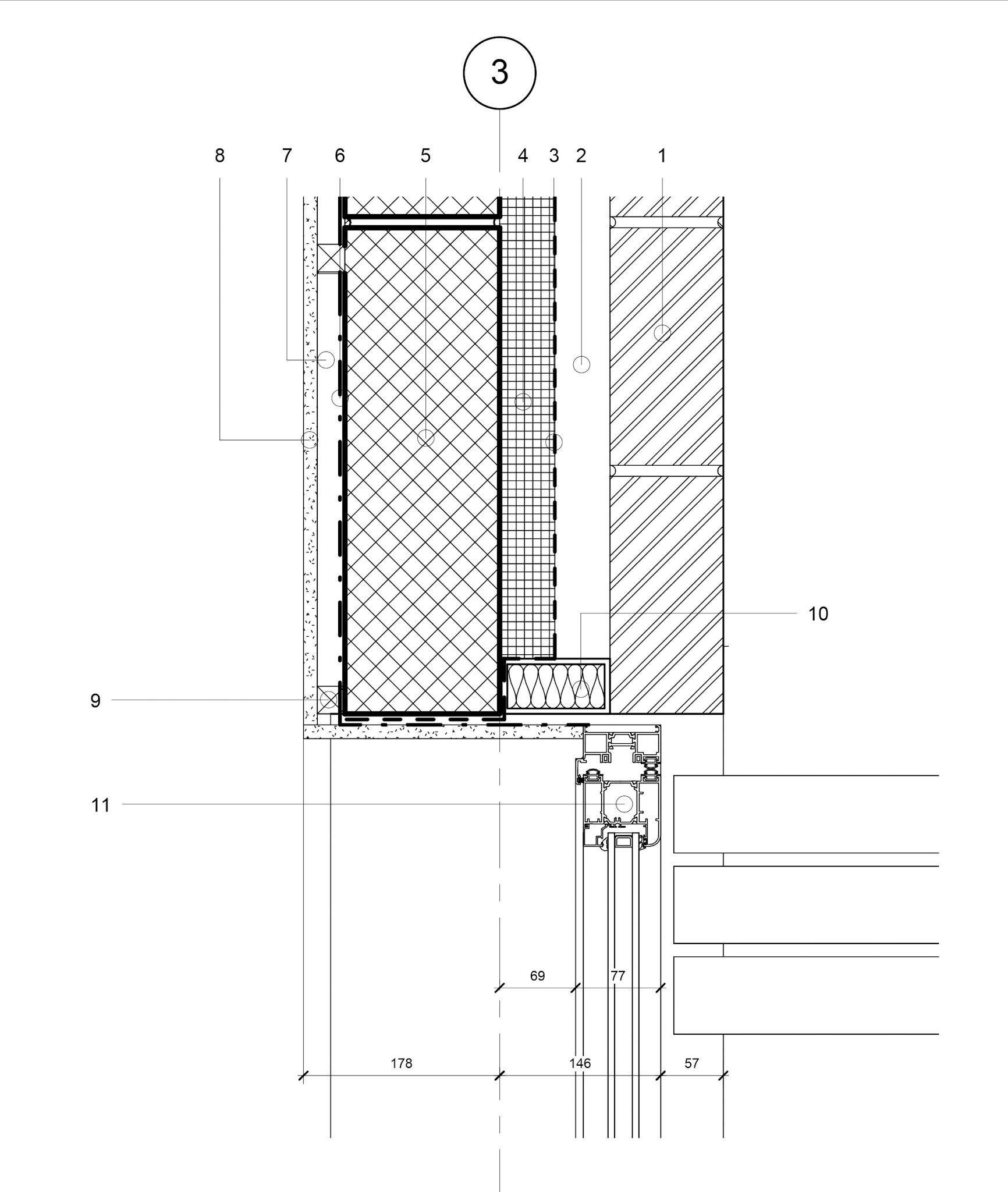

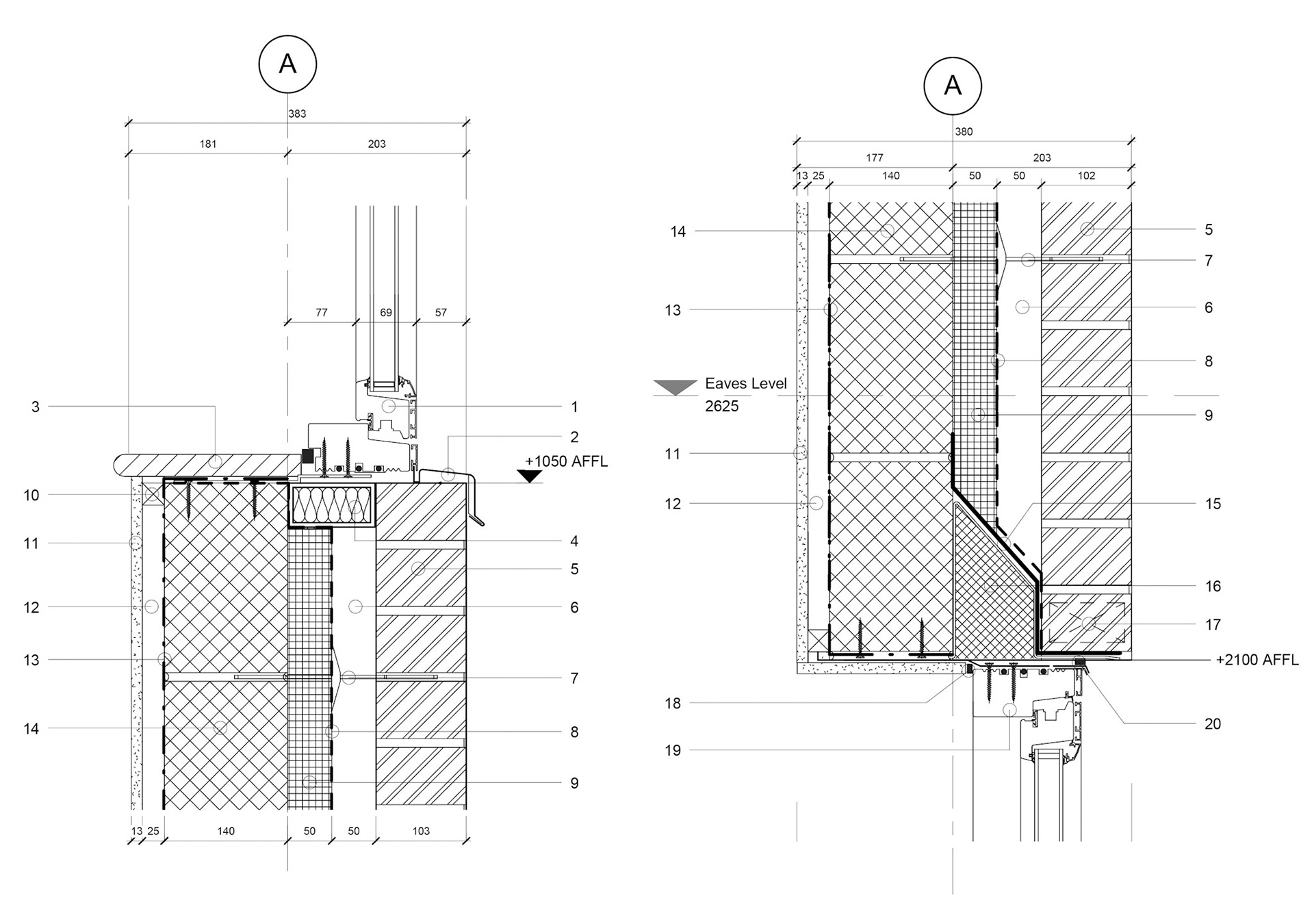

Working Drawings - 1:5 Window Cill + Head Details

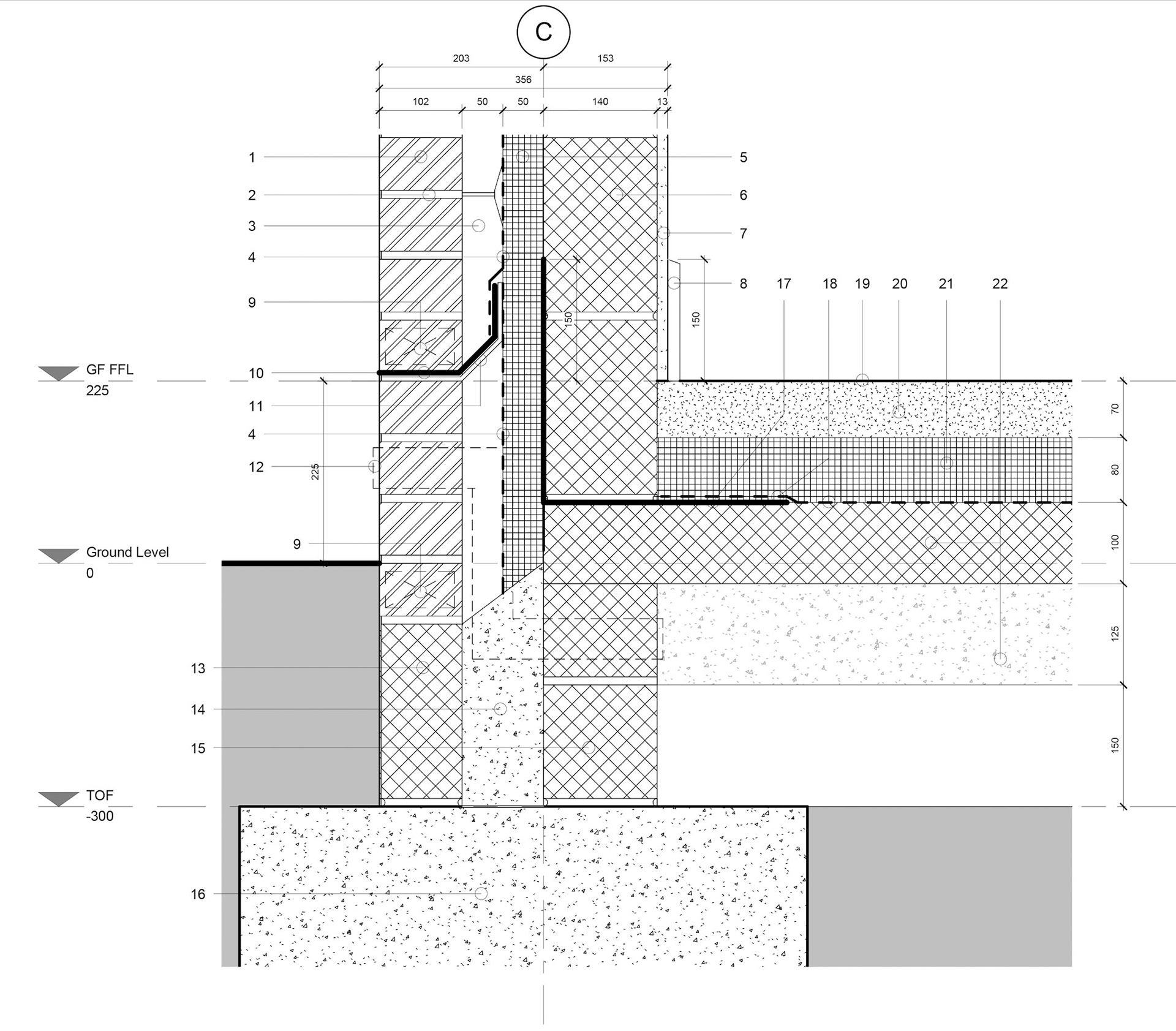

Working Drawings - 1:20 Slab Detail
